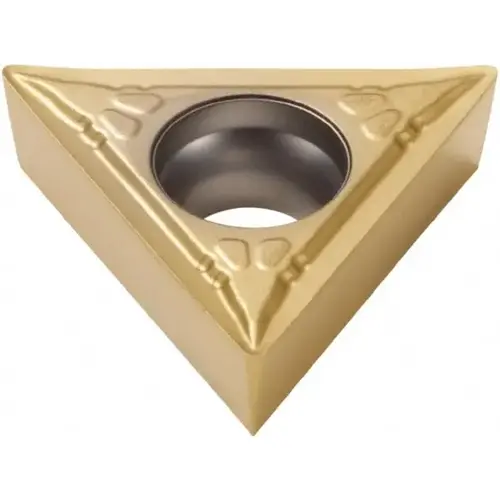

Turning Insert: TCMT 21.50.5-F1 TP40, Solid Carbide TiC

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Seco 8593 Turning Insert: TCMT 21.50.5-F1 TP40, Solid Carbide TiC

Item #: 8593 by Seco

See reviewsSee reviews
See reviews summary
In Stock

$26.44

/each
SAVE UP TO 2.64

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 65 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

3

Standards

ANSI

Included Angle

60degree

Insert Material

Carbide

Series

TCMT-F1

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0079

Manufacturers Catalog Number

00008593

Material Grade

P40

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4331in

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4331

Insert Thickness (Decimal Inch)

0.0937

Insert Thickness (Inch)

3/32

Lead Angle

60degree

Maximum Depth of Cut (Decimal Inch)

0.4134

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/128

Insert Shape

Triangle

Clearance Code

C

Full Radius

No

Insert Shape Code

T

Chip Breaker

F1

Insert Style

TCMT

Insert Size Code

21.50.5

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1142

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Back Turning

Manufacturer Grade

TP40

Length Range (Decimal Inch)

0.4000 - 0.5000

Proprietary Coating Designation

Multilayer Coating

Iso Code

TCMT110202-F1

Product Overview
Turning Insert: TCMT 21.50.5-F1 TP40, Solid Carbide TiC, TiCN & TiN Coated, Neutral, 1/4" Inscribed Circle, 1/128" Corner Radius, 60 degree Triangle, Series TCMT
