Streamline Plus 4 Roller Sliding System

Roll over image to zoom in

SGS Streamline Plus System CH Streamline Plus 4 Roller Sliding System

Item #: Streamline Plus System CH by Structure Glass Solutions

See reviewsSee reviews
See reviews summary
In Stock

$323.75

/each
SAVE UP TO 32.38

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 83 units available
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Product Overview

System Features One Sliding Door and One Fixed Panel

Use Monolithic Tempered Glass

Specially Designed Roller Bearings for Quiet Door Movement

Fixed and Sliding Panels May Be Reversed for Installation

For 5/16" to 3/8" (8 to 10 mm) Thick Tempered Glass (Not Included)

U-Channel or Glass Clamps for Fixed Panel Must Be Ordered Separately

NOW Available in Satin Brass/Brushed Gold

SGS Streamline 180 Degree Sliding System has an entirely different look from traditional sliding systems. The use of minimal hardware provides a frameless look that gives the enclosure an almost floating appearance. Specially designed roller bearings allow for quiet and easy opening and closing of the door. One sliding panel and one fixed panel make the Streamline Ideal for Tight spaces.

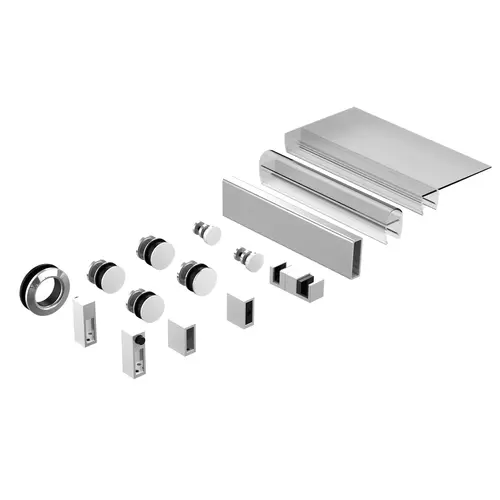

The Streamline Kit Includes:

One - 78-3/4" (2 m) Length Header Bar

Four - Rollers

Two No Fabrication Stoppers

Two - Track Holder Fittings for Wall

Two - Track Holder Fittings for Fixed Panel

One - Thru-Glass Pull(2" Diameter Hole in Glass)

One - Door Guide

SPECIFICATIONS:

Glass Thickness Range:

5/16" to 3/8" (8 to 10 mm)

Tempered Safety Glass (Not Included)

Material: Stainless Steel

Maximum Door Size: Do Not Exceed

Either 30" (762 mm) Wide or 88 Pounds (40 kg)

Fabrication: Holes Required in Both Door and Fixed Panel
