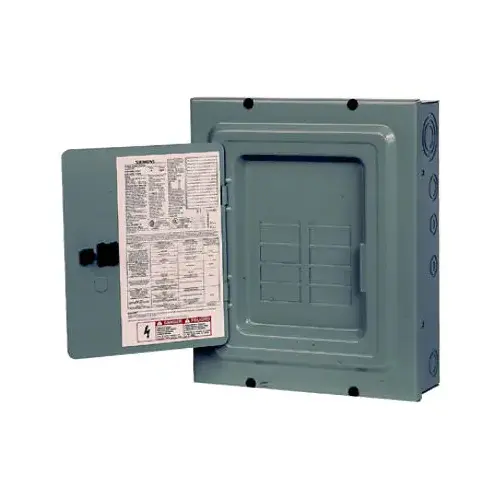

Siemens E0816ML1125S Murray E Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Item #: E0816ML1125S by Siemens AG
UPC #: 783643202122
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
1 Year
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
5.30
Defective Code
A
Breakers Included
Yes
Number of Spaces
8
Maximum Number of Circuits
16 circuits
Width
13.00
Circuit Protection Type
Main Lug
Sub Brand
EQ
Mounting Type
Surface
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Boxed
Depth
6"
Product Type
Main Lug Load Center
AMPS
125 amps
Each Weight
12.000 LB
Velocity
X
Hazardous Material
No
UNSPSC
39121101
Length
15.40
Country Origin Code
MX
Color
Gray
Bus Bar Material
Aluminum
Number of Circuits
16
Breaker/Load Center Type
Main Lug
Application
For Residential Applications
Enclosure Type
NEMA 1
Current Rating
125 A
Cable Size
4 to 2/0 AWG
Interrupt Rating
100 kA
Nomenclature
E0816ML1125S LOADCNTR 125A
Number of Phases
1
Wiring Configuration
3-wire
Voltage
120/240 V
Material
Aluminium
For Use With
Subfeed applications
Package Quantity
1
Amperage
125 Amp
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Indoor
Load Center Type
Neutral
Maximum Amperage
125 amp
NEMA Rating
1
Features
Galvanized carbon steel construction for corrosion resistance
Mount Type
Surface
MADE IN THE USA
No
Recommended Environment
Indoor, Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
5.25 in.
Assembled Product Height
15.5 in.
Assembled Product Width
13 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCENTER MAIN LUG INDR 125A
Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 8 spaces and 16 circuits maximum 1-pole, 4 QP breakers maximum 2-pole, 120/240 V. 10,000 AIR. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service entrance equipment when a main breaker (125 A maximum) is back-fed in branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. 12-3/8 in x 14-3/4 in x 3-7/8 in. UL listed, complies fully with NEC and UL requirements for Class CTL.
