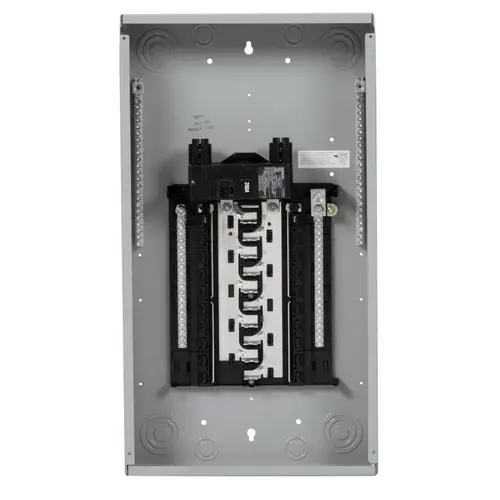

Siemens PN2040B1200C PN Assembled Load Center, 200 A, 20 -Space, 40 -Circuit, Main Breaker, Plug-On Neutral, Gray
Item #: PN2040B1200C by Siemens AG
UPC #: 804766702778
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- LED indicators for troubleshooting
- Insta-wire connectors
- Plug-on neutral load centers will accept existing pigtail breakers
- Compatible with a QSA breaker for a simple way to add surge
Voltage
120/240
Warranty
Lifetime
Pack Size
1
Manufacturer Warranty
Lifetime
Certifications and Listings
UL Listed
Indoor/Outdoor
Indoor
Load Center Type
Main Breaker
Load center width (in.)
16
Maximum Amperage
200
Number of Circuits
40
Number of Phases
1
Number of Spaces
20
UNSPSC
39121101
Interrupt Rating
22 kA
Temperature Rating
60 to 75 deg C
Wiring Configuration
3-wire
Enclosure Type
NEMA 1
Breaker/Load Center Type
Main Breaker Plug-On Neutral
Nomenclature
PN2040B1200C LOAD CENTER 200A
Bus Bar Material
Copper
Current Rating
200 A
Mounting Type
Flush Surface
Application
For indoor use
Color
Gray
MADE IN THE USA
No
Package Quantity
1
UL Listed
No
Recommended Environment
Indoor
Amperage
200 Amp
Assembled Product Depth
5.75 in.
AbilityOne
No
ADA Compliant
No
Electrical Box Type
Load Center
NEMA Rating
1
Circuit Breaker Type
Other
Assembled Product Height
28.38 in.
Mounting Location
Surface
Material
Copper
Features
Features siemens plug-on neutral for simple quick installation hat is spacious with over 4 in. of wire bending space and a secure reliable installation method
Assembled Product Width
16 in.
GSA Approved
No
Mount Type
Flush, Surface
TAA/BAA Compliant
Yes
Product Overview
LOAD CENTER 20SPC 40CIRC 200A
Specifications:
Specifications:
Application: For indoor use
Includes: (2) Factory Installed Ground Bars
PN Series load centers - a new high-quality and feature rich line of load center products meets applications for virtually every need. The PN Series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - the features that we specifically engineered to decrease installation time and increase flexibility.
