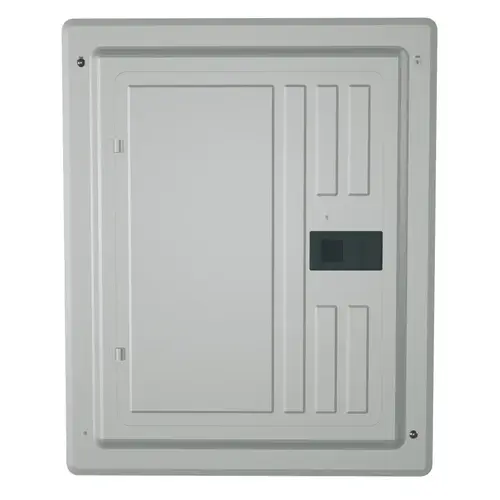

Siemens SN1224L1125 SN Assembled Load Center, 125 A, 12 -Space, 24 -Circuit, Main Lug, Plug-On Neutral, Gray
Item #: SN1224L1125 by Siemens AG
UPC #: 804766703225
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- LED indicators for troubleshooting
- Insta-wire connectors
- Plug-on neutral load centers will accept existing pigtail breakers
- Compatible with a QSA breaker for a simple way to add surge
Voltage
120/240, 120/240 volts
Warranty
1 Year
Pack Size
1
Manufacturer Warranty
1 Year
Certifications and Listings
UL Listed
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Load center width (in.)
15.70
Maximum Amperage
125, 125 amp
NEMA Configuration
NEMA 1
Number of Circuits
24
Number of Spaces
12
Height
18"
AMPS
125 amps
Mounting Type
Flush Surface
Volts
120/240 V
Depth
3.75"
Width
14.25"
UL Listed
Yes
Indoor or Outdoor
Indoor
Circuit Protection Type
Main Lug
Defective Code
A
Each Weight
20.570 LB
Hazardous Material
No
Maximum Number of Circuits
24 circuits
Returnable
Yes
Sub Brand
SN Series
Product Type
Circuit Breaker Panel
UNSPSC
39121101
Interrupt Rating
100 kA
Temperature Rating
60 to 75 deg C
Wiring Configuration
3-wire
Enclosure Type
NEMA 1
Breaker/Load Center Type
Main Lug Plug-On Neutral
Nomenclature
SN1224L1125 LOAD CENTER 125A
Bus Bar Material
Aluminum
Application
For indoor use
Color
Gray
Number of Phases
1
Current Rating
125 A
Velocity
X
Trim Color
Gray
Bus Bar Plating
Tin Plated
Material
Brass
For Use With
For Indoor Use
Package Quantity
1
Amperage
125 Amp
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
NEMA Rating
1
Features
LED Indicators For Troubleshooting
Mount Type
Flush, Surface
MADE IN THE USA
No
Recommended Environment
Indoor
Electrical Box Type
Load Center
Assembled Product Depth
20.06 in.
Assembled Product Height
4.69 in.
Assembled Product Width
15.7 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOAD CENTER 1PH 120/240V 125A
Specifications:
Specifications:
Includes: (1) Factory Installed Ground Bar
SN Series load center is the smart choice when value and quick installation are of the highest priority. The SN Series load centers include labor saving features such as the ability to accept plug-on neutral breakers, patented Insta-wire and mounting trim tabs. These exclusive features make the SN Series load center the best load center for the value minded contractor.
