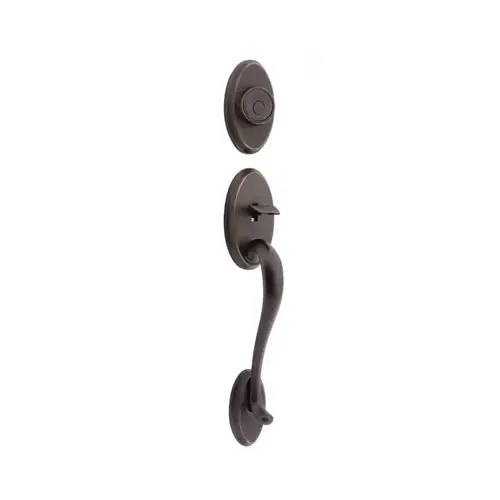

Kwikset 802SELIP-11PClick To Copy Shelburne Dummy Exterior Handleset Venetian Bronze Finish

Shelburne HandlesetSignature Series

Handlesets can elevate the entry of your home and create a warm welcome for all who come to your door. Whether you like the sleek, clean look of contemporary decor or the delicate curves of traditional hardware, Kwikset offers many styles and finishes so you can have the look you want while maintaining certified security.

Specifications: Door Prep:

• Deadbolt:
  • Cross Bore 2-1/8" or 1-1/2"
  • Edge Bore 1"
• Handle:
  • Cross Bore 2-1/8"
  • Edge Bore 1"

Backset:

• Deadbolt:
  • Adjustable to 2-3/8" or 2-3/4"
• Handle:
  • Adjustable to 2-3/8" or 2-3/4"

Door Thickness:

• 1-3/4" doors standard
• 2-1/4" doors optional
• Not designed for use on 1-3/8" doors

Cylinder:

• SmartKey Security or Pin & Tumbler

Faceplate:

• 1" x 2-1/4"
• Specify round corner, square corner or drive-in

Strikes:

• Deadbolt:
  • 1-1/4" x 3-5/8"
  • Specify round corner or square corner
  • Others options available
• Handle:
  • 2-1/4" full lip
  • Specify round corner or square corner
  • Other options available

Bolt:

• Deadbolt:
  • 1" throw
• Handle:
  • 1/2" throw

Door Handing:

• Reversible for right or left-hand doors

ANSI/BHMA:

• Deadbolt is Grade 1 Certified
• Montara Deadbolt is Grade 2 Certified

ADA:

• N/A

UL:

• Optional 1/3 hour UL* fire rating for all functions except 802, 819 and 502

Functions: Keyed One Side:

• The Keyed One Side function is a Single Cylinder deadbolt. It has a keyed cylinder on the outside and a thumb turn to lock and unlock the door on the inside.

Keyed Both Sides:

• Deadbolts come in two versions. Double Cylinder Deadbolts have a keyed cylinder on both sides. This is a good option for doors with glass or windows since an intruder can't break into the door even if the glass/window is broken.

Handle Only:

• The Handle Only function is available with knobs/lever or as exterior only and can be paired with your deadbolt of choice, including any of our electronic or smart deadbolts.

Pull Only:

• The Pull Only function is a handle with no mechanical latch for doors where only a pull is required. This is sometimes called Dummy.

Finishes:

• Venetian Bronze

• Antique Nickel

• Satin NickelPolished Chrome

• Polished Chrome
