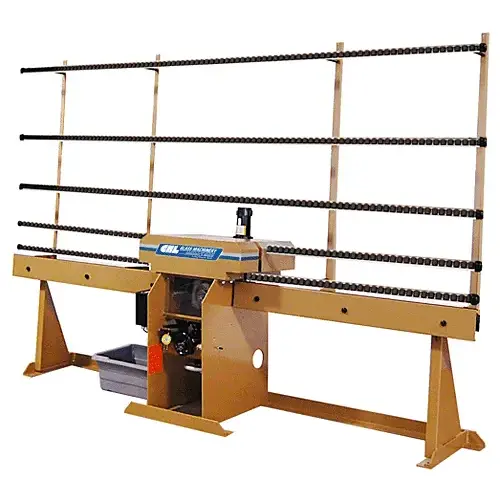

CRL AU11 Single Spindle Automatic Glass Edging Machine with Australian 240V, 50Hz Electrical System

Item #: AU11 by CR Laurence

Item Discontinued!
1 reviews

CRL AU11 Single Spindle Automatic Glass Edging Machine with Australian 240V, 50Hz Electrical System

Item #: AU11 by CR Laurence

Item Discontinued!
1 1 reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • CRL Stocks, Ships From Your Nearest CRL Warehouse
  • Diamond Flat and Seam, Plus a Polishing Wheel are All Included
  • Edges Glass Up to 1.68 m Per Minute
  • Recirculating Coolant Eliminates Dust
  • Single Spindle for 3 to 12 mm Glass

Shipping Crate Dimensions

3.28 m L x 1.27 m H x 914 mm W

The CRL Single Spindle Edger can handle 3 to 12 mm thick glass. Depending on the type of wheel used, the machine can pencil edge, miter, flat and seam your glass. The single spindle can accommodate two wheels which can be easily repositioned as needed. This Edger will allow you to do quality edgework up to six times faster than a Abrasive Belt machine.
CRL SINGLE SPINDLE EDGER SPECIFICATIONS:
CAPACITIES:
  • Glass Thickness 3 to 12 mm
  • Minimum Size is 102 mm Tall x 254 mm Long
  • Edge Side Must be at Least 254 mm Long to Process
  • Maximum Size is 1.83 x 1.83 m Without Additional Support
  • Maximum Glass Weight is 113.4 kg
    UTILITIES:
  • Electrical Three Motors Running a Total 0.87kw (1-1/6 Horsepower)
  • Voltage Required is 240 Volts AC, 50Hz, Single Phase
    Power (6.4 Amps)
    INCLUDES:
  • One 178 x 6 mm Diamond Flat Edge and Seam Wheel
  • One 184 x 19 mm Polishing Wheel
