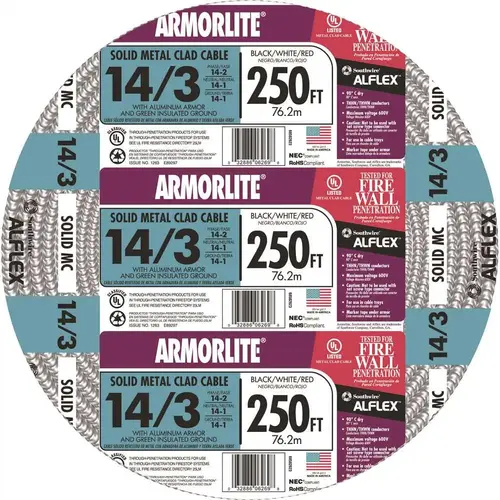

Southwire 68582601 14/3 x 250 ft. Solid CU MC (Metal Clad) Armorlite Cable Silver
Item #: 68582601 by Southwire Incorporated
UPC #: 032886346477
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Length (ft.)
250
Direct Burial
No
Conductor Gauge
14
Wire/Cable Type
MC
Product Width (in.)
13.25
Wire/Cable Length (ft.)
250
Commercial/Residential
Commercial / Residential
Wire/Cable Material
Copper
Length
250 ft.
Certifications and Listings
UL Listed
Product Height (in.)
6
Diameter
0.464 in.
Conductor Material
Copper
Wire Gauge
14/3
Stranded or Solid
Solid
Indoor/Outdoor
Indoor, Outdoor
Product Depth (in.)
13.25
Warranty
N/A
Manufacturer Warranty
N/A
Certifications
UL, Made in the USA
Gauge
14
Pack Size
1
UNSPSC
26121613
Voltage
600 V
Application
Commercial,Industrial,Institutional,Multiresidential Buildings
Package Quantity
1
UL Listed
No
Amperage
15 Amp
Wire Length
250 ft.
ADA Compliant
No
Insulation Material
Nylon, PVC
Wire Type
THHN
Maximum Operating Temperature
194 °F
Minimum Operating Temperature
-6.8 °F
Jacket Material
Aluminum
Number of Conductors
3
MADE IN THE USA
Yes
Recommended Environment
Dry Environment
Resistance Features
Moisture-Resistant
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
Southwire Armorlite Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90C dry available in sizes 14 AWG through 2 AWG and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
- Branch, feeder and service power distribution in commercial, industrial, institutional and multi-residential buildings
- Power, lighting, control and signal circuits
- Fished or embedded in plaster
- Concealed or exposed installations
- Environmental air-handling spaces per NEC 300.22 (C)
- Places of assembly per NEC 518.4 and theaters per NEC 520
- Installation in cable tray and approved raceways
- Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) and 645.5(D)(2)
- Conductors are cabled together and wrapped with a binder tape bearing the print legend
- Aluminum interlocking armor jackets
- 1-UL listed
