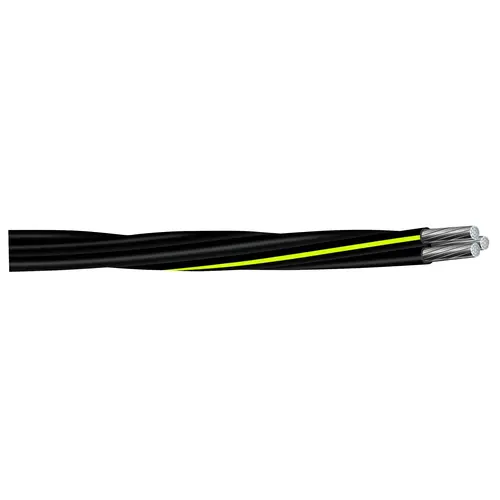

Building Wire, #4/0 AWG Wire, 3 -Conductor, 500 ft L, Aluminum Conductor, Yellow Sheath

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Southwire 4/0 4/0 4/0 URD Building Wire, #4/0 AWG Wire, 3 -Conductor, 500 ft L, Aluminum Conductor, Yellow Sheath

Item #: 4/0 4/0 4/0 URD by Southwire Incorporated

UPC #: 032886537486

See reviewsSee reviews
See reviews summary
In Stock

$2,422.35

/spool
SAVE UP TO 242.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 24 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Conductors are stranded, compressed 1350-H19, H16 or H26 aluminum, insulated with vulcanized interlinked polyethylene (VIP 1), Southwire's cross-linked polyethylene
  • Neutrals are triple yellow extruded stripe
  • Cables with "YES" neutrals have sequential footage markers
  • Conductors are durably surface printed for identification
  • Two-phase conductors and one neutral conductor are cabled together to produce the triplex cable configuration
  • Conductors are also available paralleled

Conductor Insulation

Polyethylene

Sheath Color

Yellow

Wire Size

4/0 AWG

Operating Temperature

90 deg C

Number of Conductors

3

Type

Monmouth Underground

Current Rating

315 A Direct Burial 240 A in Ducts

Length

500"

Nomenclature

4/0-4/0-4/0X500'URD WIRE MNMTH

Conductor Material

Aluminum

Sheath Diameter

1421 mil

Strands per Conductor

18 Phase 18 Neutral

Product Overview
CABLE URD DIST 4/0-4/0-4/0X500
Specifications:

Application: For secondary distribution and underground service at 600 V or less, either direct burial or in ducts

Consists of two cross-linked polyethylene insulated phase conductors triplexed with a yellow-striped, cross-linked polyethylene insulated neutral. High quality heat and moisture-resistant cross-linked polyethylene is rated 75 deg C for wet and 90 deg C for dry locations. 240 A maximum in duct or 315 A in direct earth burial applications with a maximum conductor temperature of 90 deg C, 600 V. 4/0 - 4/0 - 4/0 URD x 500' spool. UL listed.
