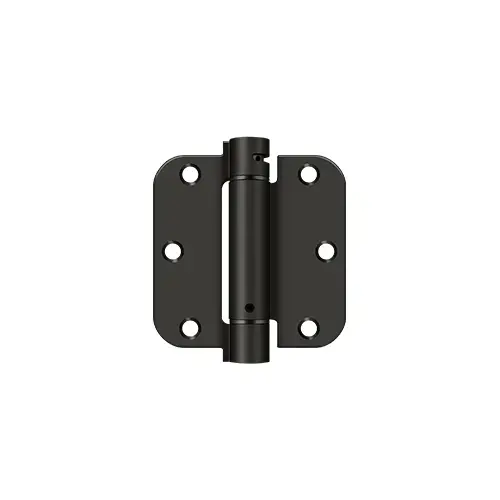

Deltana DSH35R510B 3-1/2" x 3-1/2" x 5/8" Spring Hinge in Oil-rubbed Bronze
Item #: DSH35R510B by Deltana
UPC #: 760923539536
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- It produces no squeaking sound even during the changes in weather
- The hinge plate has rounded corner and does not harm the material
- It comes with pre-drilled holes at alternate positions to provide better support
- The finishes are good enough to resist stain and can be cleaned easily
Corners
5/8" Radius Corner
Function
Hinge
Gauge
0.097
Hinge Height
3.5
Hinge Strength
Hinge Type
Spring Hinge
Hinge Width
3.5
Hole Pattern
Arc
Mounting Type
Mortise
Number of Holes
6
Number of Knuckles
3
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R5
Corner
5/8" Radius
Dimensions
Width: 3.5 inches
Color
Oil Rubbed Bronze
Size
3-1/2" Height x 5/8" Radius
HingeGrade
Commercial
Height
3-1/2
Width
3-1/2
Thickness
0.097
Finish
US10B
Material
Steel
Adjustable
Yes
Mounting Hardware Included
Yes
Manufacturer Warranty
3 Year Mechanical, 1 Year Finish
Installation Type
Screw
Machine Screw
#9 x 1/2
Wood Screw
#9 x 3/4
Hinge Mount
Full Inset
Configuration
Hinges
Self Closing
Yes
Soft Close
No
Product Class
Residential
Type
Radius Corner
Screws
Wood Screw: #9x3/4" Machine Screw: #9x1/2"
Pack Size
1
Finish Description
Oil Rubbed Dark Bronze
Hinge Size
3-1/2 x 3-1/2 Inch
Product Type
Hinge/Pivot
Series
DSH Series Hinges
Maximum Door Height
7 ft.
Color Code
613/US10B
Maximum Door Weight
1 Each Springe Hinge: 50 lb.; 2 Each Springe Hinge: 70 lb.; 3 Each Springe Hinge: 90 lb.
Maximum Door Width
3 ft.
Product Material
Steel
Fastener Size
Machine Screw: 3/4 in x 9; Wood Screw: 1/2 in x 9
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Finish Family
Dark Bronze
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_3
Product Overview
Hinge is an important hardware that joins the two solid parts without causing much damage to the surface. It is a simple mechanical bearing that is installed over the wooden or metallic door of cabinet. This product is a spring hinge that is available in variety of finishes to coordinate with the interior décor color theme and also your furniture. It is one of the strongest hinge because the lever is concealed and remains safe from damage.
