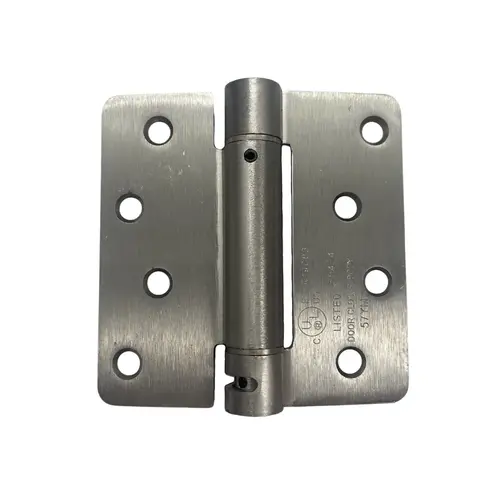

Deltana DSH4R415 4" x 4" x 1/4" Spring Hinge; Satin Nickel Finish
Item #: DSH4R415 by Deltana
UPC #: 760923549443
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Concealed lever prevents the damage to the hinge
- The adjustable hinge is perfect for all types of furniture
- It can resist the scratch very well even if it is used roughly
Corners
1/4" Radius Corner
Function
Residential Hinge
Gauge
0.097
Hinge Height
4
Hinge Strength
Residential
Hinge Type
Spring Hinge
Hinge Width
4
Hole Pattern
Zig Zag
Mounting Type
Mortise
Number of Holes
8
Number of Knuckles
3
Removable Pin
Without Removable Pin
Screw Type
Wood
Theme
Traditional
Application
R4
Corner
1/4" Radius
Dimensions
Width: 4 inches
Color
Satin Nickel
Size
1/4" Radius
HingeGrade
Commercial
Height
4
Width
4
Finish
Satin Nickel
Material
Steel
Machine Screw
#10x1/2"
Options
UL Listed
Thickness
0.097"
Wood Screw
#10x1"
Type
Radius Corner
Screws
Wood Screw: #10x1" Machine Screw: #10x1/2"
Pack Size
1
Maximum Door Weight
1 Each Springe Hinge: 60 lb.; 2 Each Springe Hinge: 85 lb.; 3 Each Springe Hinge: 110 lb.
Maximum Door Width
3 ft.
Finish Description
Satin Nickel
Finish Family
Satin Nickel
Hinge Size
4 x 4 Inch
Product Material
Steel
Standards
UL Listed
Fastener Size
Machine Screw: 1 in x 10; Wood Screw: 1/2 in x 10
Function Family
Hinge/Pivot
Features
Deltana Self Closing Spring Hinges are Adjustable and Come in an Array of Fine Finishes
Product Type
Hinge/Pivot
Manufacturer Parent
Deltana
Sub-Series
HP_Spring_Hinges_Deltana_6
Maximum Door Height
7 ft.
Color Code
619/US15
