SPS 90TSS1 Standard Support Assembly
Item #: 90TSS1 by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Ideal for Mounting to Steel I-Beams
- Provides 'Fine-Tune' Adjustment
- Provides 6" (152 mm) of Vertical Adjustment
Type
Standard Support Assembly
Works with
SPS System

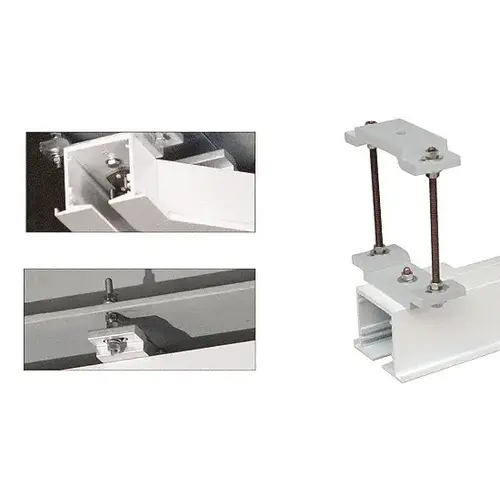

The SPS Standard Support Assembly is used when the mounting substrate is within 6" (152 mm) of the top of the SPS Overhead Track. Each set consists of a steel Upper Mounting Bracket, an aluminum Lower Mounting Bracket, two 1/2”-13 x 7" (178 mm) long Suspension Rods, a 1/2”-13" x 1-1/4" (31.7 mm) Track Mounting Bolt, nine 1/2”-13" Hex Nuts, nine Flat Washers, and five Lock Washers.
NOTE: The Upper Mounting Bracket requires a single fastener (not supplied) to attach it to the substrate, or if mounting to steel, it can be welded. It can also be eliminated by attaching Suspension Rods directly to the steel substrate. Consult a structural engineer for recommendations.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
.
