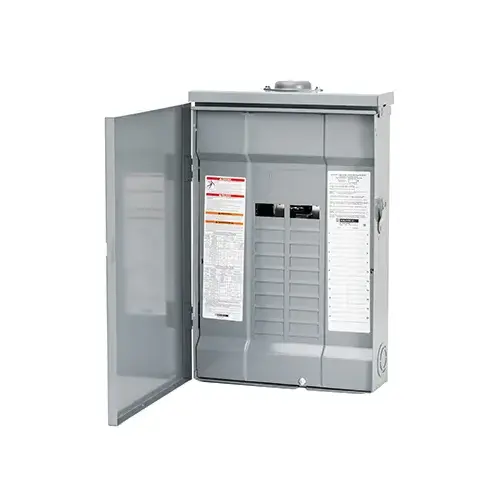

SQUARE D BY SCHNEIDER ELECTRIC HOM2040L125PRB Homeline 125A 20-Space 40-Circuit Raintight Main Lug Plug-on Neutral Load Center
Item #: HOM2040L125PRB by SQUARE D
Brand: SQUARE D BY SCHNEIDER ELECTRIC
UPC #: 785901847557
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Height
4.80
Width
15.50
Country Origin Code
US
Length
23.70
Hazardous Material
No
Voltage
120/240
Wire Size
6-2/0 AWG (Copper, Aluminum)
Amperage
125
Phase
Single
Number of Spaces
20
Certification
UL Listed
Enclosure Type
Raintight
Series
Homeline
Mount Type
RB
Max Number of Circuits
40
Type
Load Center
Range
Homeline
Load Center Type
PoN Convertible Mains (lugs)
Accessories
HOMFPCP
Cover Type
Surface Cover
Electrical Connection
Lugs
Enclosure Material
welded galvannealed steel
Product Depth
4.53 in
Product Width
14.76 in
Spaces
20
Product Certification
UL listed file E-6294
Relationship Type
Compatible relationship
Bus Rated Current
125.0 A
China Rohs In Scope
No
China Rohs Label
1
Device Composition
grounding bar (ordered separately)
Energy Efficiency Optimized
FALSE
Environmental Disclosure
ENVPEP2212003EN
Eoli Availability Display
No need of specific recycling operations
Eu Rohs Directive
Compliant
Green Premium Status For Reporting
Green Premium product
Packaging Without Single Use Plastic
No
H And D Domain
Safety
Mercury Free
Yes
Market Segmentation
Residential
H And D Enrichment Class 3
Load centers (equipped)
Legacy Weee Scope
In
Line Rated Current
125 A
H And D Enrichment Assignment
no
Packaging Made With Recycled Cardboard
No
Rohs Eur Conformity Date
2531
Without Single Use Plastic
No
Rohs Exemption Information
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Tier
1
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Use Carbon Footprint
0.087341
Sustainable Packaging
No
With Recycled Cardboard
No
Take Back
No
Short Circuit Current
10 kA
Recycled Metal Content At Cr Level
0%
Wd Status
1 - GSC certified
Product Overview
Square D Homeline outdoor, convertible main lugs Plug-on Neutral load center. Plug-on Neutral ready and built with a plated aluminum bus bar that is tested and listed only for Homeline circuit breakers. Designed for the value-minded contractors, remodelers, builders, and homeowners. Engineered for fast installation and wire savings.
