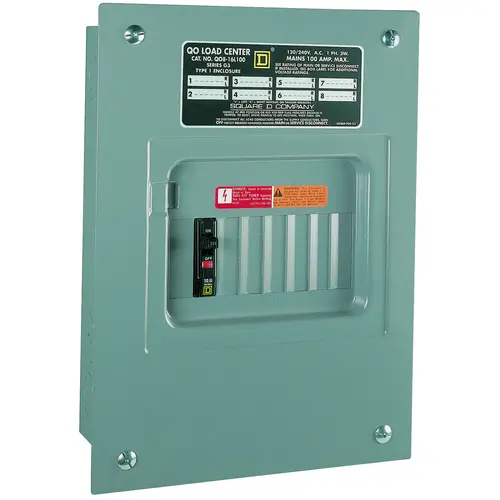

Square D QO816L100SCP QO Load Center, 100 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting
Item #: QO816L100SCP by SQUARE D
UPC #: 047569804762
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Used as an add-on panel
- Indoor and outdoor versions
- QO Main Lug Load Center
- Separate flush or surface mount covers
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Does not contain a main breaker
- 100 amp, 8 space, 16 circuit, Indoor, Surface mount cover
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
- Single, captive interior mounting screw can't be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
Height
4.20
ECCN
EAR99
Width
10.40
Country Origin Code
MX
Length
15.00
Hazardous Material
No
Finish
Baked Enamel
Color
Gray
Bus Bar Material
Aluminum
Number of Spaces
8
Number of Circuits
16
Mounting Type
Plug
Breaker/Load Center Type
Main Lug
Enclosure Type
NEMA 1
Current Rating
100 A
Cable Size
8 to 1 AWG
Interrupt Rating
10 kA
Nomenclature
QO816L100SCP 100A LOAD CENTER
Cover/Lid Type
Surface
Number of Phases
1
Wiring Configuration
3-wire
Main lug indoor load center, 100 A, 8 space/16 circuits. 1-1/2 in maximum knockouts in the top and bottom end walls to accommodate overhead or underground feed. Maximum load of 240 V and a 10,000 SCCR. NEMA type 1. Copper bus for conductivity. Single phase, 3-wire, solid neutral. UL listed.
