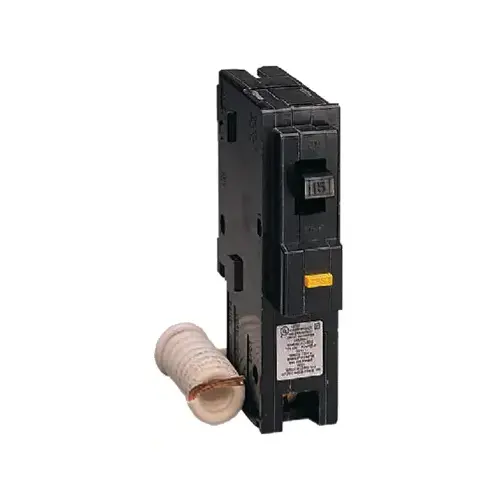

Square D HOM115GFICP Homeline Circuit Breaker, Mini, 15 A, 1 -Pole, 120 V, Fixed Trip, Plug Mounting, Black
Item #: HOM115GFICP by SQUARE D
UPC #: 047569071096
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 10,000 AIR
- HOM one-pole standard circuit breakers (15 - 50 A)
- HOM two-pole standard circuit breakers (15 - 200 A)
- Homeline 15 Amp one-pole GFCI circuit breaker
- Limited Lifetime Warranty
- HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
- HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
- Compatible with Homeline load centers and CSED devices
- HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
- 120-Volt AC
- Plug-on design, easy to install
- Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
- Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
- Available accessories include handle attachments, filler plates, and neutral lugs
- HOM sub-feed lugs, two-pole, rated 125 A and 225 A
Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
1.00
Defective Code
A
Number of Spaces
1 space
Width
4.40
Circuit Protection Type
Plug In
Sub Brand
HomeLine
Mounting Type
Plug
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Sleeve
Depth
2.98"
Number of Poles
1
Product Type
Circuit Breaker
AMPS
15 amps
CSA Listed
No
Each Weight
0.600 LB
Velocity
D
Hazardous Material
No
UNSPSC
39121601
Length
7.70
ECCN
EAR99
Country Origin Code
MX
Trip Sensitivity
20.25 A
Color
Black
Wire Size
14 to 10 AWG
Trip Type
Fixed
Operating Temperature
104 deg F
Type
Mini
Operating Frequency
50/60 Hz
Current Rating
15 A
Actuator Type
Quick-Make Quick-Break
Terminal Type
Screw Clamp
Interrupt Rating
10 kA
Dimensions
1 in W x 2.98 in D x 3.13 in H
Nomenclature
HOM115GFICP HOM GFCI BRKR15A2P
Number of Phases
1
Engineered for value, Homeline circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
