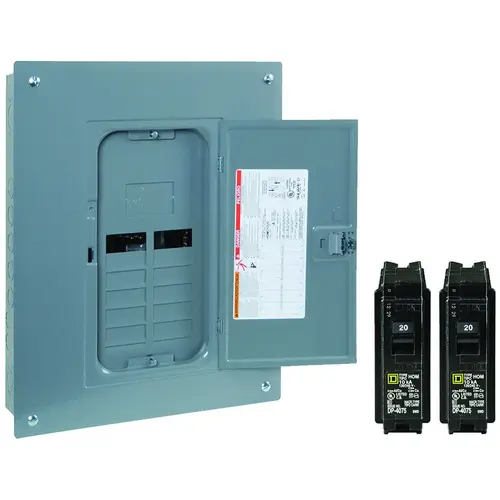

Square D HOM1224L125PGCVP Homeline Load Center, 125 A, 12 -Space, 24 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Item #: HOM1224L125PGCVP by SQUARE D
UPC #: 785901864288
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Each pole space accepts full-size, tandem or quad breakers
- Overhead/underground feed simply by rotating the device before installing
Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Pack Size
1
UNSPSC
39121101
Height
5.70
Width
16.10
Country Origin Code
US
Length
20.60
Hazardous Material
No
Finish
Baked Enamel
Color
Gray
Bus Bar Material
Aluminum
Number of Spaces
12
Number of Circuits
24
Mounting Type
Plug
Breaker/Load Center Type
Main Lug
Enclosure Type
NEMA 1
Current Rating
125 A
Cable Size
6 to 2/0 6 to 1 AWG
Interrupt Rating
10 kA
Nomenclature
HOM1224L125PGCVP LOADCNTR 125A
Cover/Lid Type
Flush
Number of Phases
1
Wiring Configuration
3-wire
Voltage
120/240 V
Material
Brass
For Use With
Compatible With Any Square D Homeline Circuit Breaker
Package Quantity
1
UL Listed
No
Amperage
125 Amp
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage
125 amp
NEMA Rating
1
Features
Clean Gutter
Mount Type
Flush, Surface
MADE IN THE USA
Yes
Recommended Environment
Indoor
Electrical Box Type
Load Center
Assembled Product Depth
3.75 in.
Assembled Product Height
17.92 in.
Assembled Product Width
14.25 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
ECCN
EAR99
Product Overview
LOADCENTER 125A 12SP 24CIRCUIT
Specifications:
Specifications:
Includes: (1) Grounding Bar (2) Circuit Breaker 1P 20 A 120/240 VAC
Homeline value pack, plug on neutral. 12 space, 24 circuit. Main Lug 125 A. Includes cover and ground bar kit with load center. Includes two HOM120 circuit breakers.
