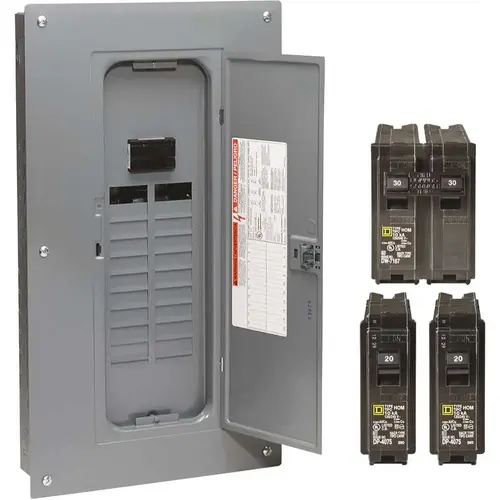

Homeline 100 Amp 20-Space 40-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Cover - Value Pack

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Square D HOM2040M100PQCVP Homeline 100 Amp 20-Space 40-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Cover - Value Pack

Item #: HOM2040M100PQCVP by SQUARE D

UPC #: 785901639343

See reviewsSee reviews
See reviews summary
In Stock

$163.43

/each
SAVE UP TO 16.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 95 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Warranty

Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.

Pack Size

1

Returnable

Yes

UL Listed

Yes

Height

20..9"

Defective Code

A

Breakers Included

Yes

Number of Spaces

20 space

Maximum Number of Circuits

40 circuits

Width

14.2"

Circuit Protection Type

Single Pole

Sub Brand

HomeLine

Mounting Type

Combination Mount

Indoor or Outdoor

Indoor

Volts

120/240 V

Packaging Type

Boxed

Depth

3.8"

Product Type

Load Center Main Breaker Kit

AMPS

100 amps

Each Weight

22.460 LB

Velocity

X

Hazardous Material

No

UNSPSC

39121101

Voltage

120/240

Wire Size

6-2/0 AWG (Aluminum), 6-1 AWG (Copper)

Amperage

100

Phase

Single

Certification

UL Listed

Enclosure Type

Indoor

Series

Homeline

Mount Type

Combination

Max Number of Circuits

40

Material

Brass

For Use With

Compatible With Any Square D Homeline Circuit Breaker

Color

Gray

Package Quantity

1

Mounting Location

Surface

ADA Compliant

No

Circuit Breaker Type

Other

Indoor/Outdoor

Indoor

Load Center Type

Main Breaker

Maximum Amperage

100 amp

NEMA Rating

1

Number of Circuits

40

Number of Phases

1

Features

Clean Gutter

MADE IN THE USA

Yes

Recommended Environment

Indoor

Electrical Box Type

Load Center

Assembled Product Depth

3.75 in.

Assembled Product Height

20.92 in.

Assembled Product Width

14.25 in.

GSA Approved

No

AbilityOne

No

TAA/BAA Compliant

Yes

Product Overview

The Square D by Schneider Electric Homeline Value Pack 100 Amp 20-Space 40-Circuit Indoor Convertible Main Breaker Qwik-Grip Load Center for Plug-on Neutral breakers includes the cover, a selection of breakers and is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.

  • Innovative cable entry system quickly grips the branch wires while eliminating steel KO's and cable connectors for a faster installation
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • Includes (2) HOM120 Homeline 20 Amp single-pole circuit breakers, (1) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 22,000 air short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
