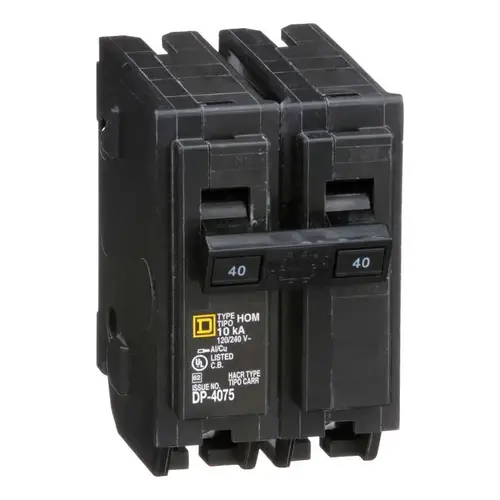

Square D HOM240CP Homeline Circuit Breaker, Mini, 40 A, 2 -Pole, 120/240 V, Fixed Trip, Plug Mounting, Black
Item #: HOM240CP by SQUARE D
UPC #: 047569062780
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Plug-on design, easy to install
- HOM one-pole standard circuit breakers (15 - 50 A)
- HOM two-pole standard circuit breakers (15 - 200 A)
- 120/240-Volt AC
- 10,000 AIR
- HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
- HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
- Limited Lifetime Warranty
- HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
- Homeline 40 Amp two-pole circuit breaker
- Compatible with Homeline load centers and CSED devices
- Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
- Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
- Available accessories include handle attachments, filler plates, and neutral lugs
- HOM sub-feed lugs, two-pole, rated 125 A and 225 A
Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
2.00
Defective Code
A
Number of Spaces
2
Width
3.10
Circuit Protection Type
Surge
Sub Brand
HomeLine
Mounting Type
Plug
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Bulk
Depth
2.98"
Allocation Quantity
6
Number of Poles
2
Product Type
Circuit Breaker
AMPS
40 amps
CSA Listed
No
Each Weight
0.700 LB
Velocity
B
Hazardous Material
No
UNSPSC
39121601
Length
3.20
ECCN
EAR99
Country Origin Code
MX
Trip Sensitivity
100 A
Color
Black
Wire Size
8 to 2 AWG
Trip Type
Fixed
Operating Temperature
104 deg F
Type
Mini
Operating Frequency
50/60 Hz
Current Rating
40 A
Terminal Type
Lug
Interrupt Rating
10 kA
Dimensions
2 in W x 2.98 in D x 3.13 in H
Nomenclature
HOM240CP PLUGON BREAKER 40A 2P
Number of Phases
1
Voltage
120/240
Frame Size
2-Space
Amperage
40
Width (in)
1
Certification
ANSI/UL Listed
Mount Type
Plug-In
Interruption Type
Standard Trip
Material
Other
For Use With
Homeline Load Center
Package Quantity
1
ADA Compliant
No
Circuit Breaker Type
Standard Circuit Breaker
Maximum Amperage
40 Amp
Maximum Operating Temperature
104 F
Minimum Operating Temperature
77 F
MADE IN THE USA
No
Terminal Connection Type
Box Lugs
Tripping Mechanism
Thermal-Magnetic
Assembled Product Depth
2.98 in.
Assembled Product Height
3.13 in.
Assembled Product Width
2 in.
GSA Approved
No
Breaking Capacity
10 kA
AbilityOne
No
TAA/BAA Compliant
Yes
Space Required
2
Product Overview
CIRCUIT BREAKER HOM 2P 1IN 40A
Engineered for value, Homeline circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
