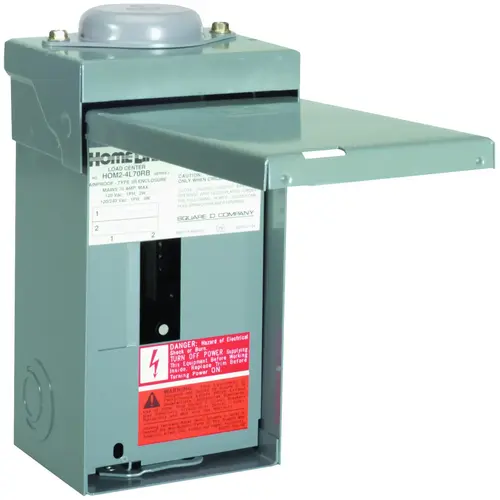

Square D HOM24L70RBCP Homeline Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 3R Enclosure, Plug Mounting Gray
Item #: HOM24L70RBCP by SQUARE D
UPC #: 047569071225
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Accommodates plug-on secondary surge arrestor (sold separately)
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Includes a rainproof outdoor cover, and is for use as a main lug load center in fixed applications
- Surface mount device cover without a door
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Single phase
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
4.60
Defective Code
A
Breakers Included
No
Number of Spaces
2
Maximum Number of Circuits
4 circuits
Width
7.00
Circuit Protection Type
Main Lug
Sub Brand
HomeLine
Mounting Type
Plug
Indoor or Outdoor
Outdoor
Volts
120/240 V
Packaging Type
Boxed
Depth
1.6"
Product Type
Main Lug Load Center
AMPS
70 amps
Each Weight
4.500 LB
Velocity
C
Hazardous Material
No
UNSPSC
39121101
Length
12.00
ECCN
EAR99
Country Origin Code
MX
Finish
Baked Enamel
Color
Gray
Bus Bar Material
Aluminum
Number of Circuits
4
Breaker/Load Center Type
Main Lug
Enclosure Type
NEMA 3R
Current Rating
70 A
Cable Size
12 to 3 14 to 4 AWG
Interrupt Rating
10 kA
Nomenclature
HOM24L70RBCP LOADCENTER 70A
Cover/Lid Type
Surface
Number of Phases
1
Wiring Configuration
3-wire
Voltage
120/240
Wire Size
(14) #4 AWG Copper, (12) #3 AWG Aluminum
Amperage
70
Phase
Single
Certification
UL Listed
Series
Homeline
Mount Type
RB
Max Number of Circuits
4
Material
Brass
For Use With
Compatible With Any Square D Homeline Circuit Breaker
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage
70 amp
NEMA Rating
3R
Features
Single Phase
MADE IN THE USA
No
Recommended Environment
Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
4 in.
Assembled Product Height
9.38 in.
Assembled Product Width
4.88 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCENTER MAINLUG HOM OUT 70A
Main lug outdoor load center, 70 A, 2 space and 4 circuit. NEMA type-3R enclosure with a rainproof cover for outdoor use. Class 1170 unit is intended for use in fixed applications and can accommodate overhead or underground feed. Maximum SCCR of 10,000. ANSI certified and UL listed.
