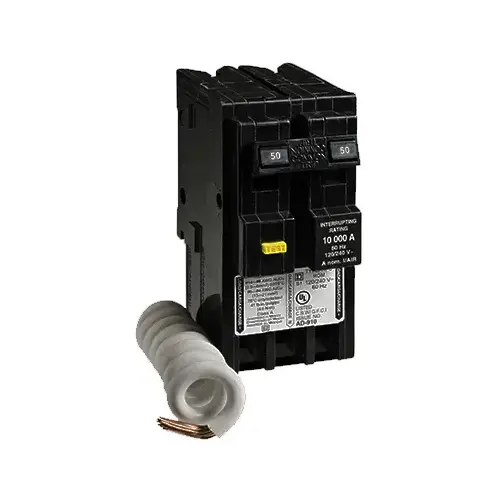

Square D HOM250GFICP Homeline Circuit Breaker, GFCI, Mini, 50 A, 2 -Pole, 120/240 V, Fixed Trip, Plug Mounting Black
Item #: HOM250GFICP by SQUARE D
UPC #: 785901875895
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Limited lifetime warranty
- HOM one-pole standard circuit breakers (15 - 50 A)
- HOM two-pole standard circuit breakers (15 - 200 A)
- ANSI certified and UL listed
- Homeline 50 Amp two-pole GFCI circuit breaker
- HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
- HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
- 10,000 AIR
- HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
- Plug-on design, easy to install
- 120/240 VAC
- Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
- Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
- Compatible with Homeline load centers and CSED devices
- Available accessories include handle attachments, filler plates, and neutral lugs
- HOM sub-feed lugs, two-pole, rated 125 A and 225 A
Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
Pack Size
1
UNSPSC
39121601
Height
2.00
Length
6.00
Width
4.00
Hazardous Material
No
ECCN
EAR99
Country Origin Code
MX
Trip Sensitivity
67.5 A
Color
Black
Wire Size
12 to 4 14 to 6 AWG
Number of Spaces
2
Trip Type
Fixed
Mounting Type
Plug
Operating Temperature
104 deg F
Type
GFCI Mini
Operating Frequency
50/60 Hz
Current Rating
50 A
Terminal Type
Screw Clamp
Interrupt Rating
10 kA
Dimensions
2 in W x 2.98 in D x 3.13 in H
Number of Poles
2
Nomenclature
HOM250GFICP 50A 2P GFCI BREAKR
Number of Phases
1
Voltage
120 AC
Frame Size
2-Space
Amperage
50
Width (in)
1
Certification
UL Listed
Mount Type
Plug-On
Interruption Type
GFCI
Material
Brass
For Use With
Square D Homeline breaker boxes and CSED devices with 2 spaces
Package Quantity
1
UL Listed
No
ADA Compliant
No
Circuit Breaker Type
Ground Fault Circuit Breaker
Maximum Amperage
50 amp
MADE IN THE USA
No
Tripping Mechanism
Electronic
Assembled Product Depth
2.98 in.
Assembled Product Height
3.13 in.
Assembled Product Width
2 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Space Required
2
Product Overview
CIRCUIT BREAKR GFCI HOM 2P 50A
Engineered for value, Homeline circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
