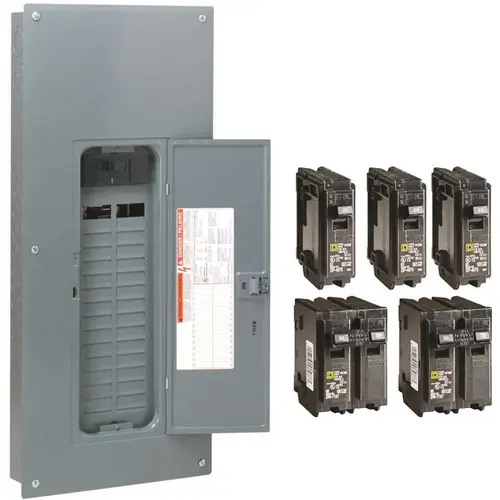

Square D HOM3060M150PCVP Homeline 150 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover - Value Pack
Item #: HOM3060M150PCVP by SQUARE D
UPC #: 785901977704
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Pack Size
1
UNSPSC
39121101
MADE IN THE USA
Yes
Package Quantity
1
UL Listed
No
Color
Gray
For Use With
Compatible With Square D Homeline Circuit Breakers
Recommended Environment
Indoor
Number of Spaces
30
Number of Circuits
60
Amperage
150 Amp
Assembled Product Depth
3.75 in.
Load Center Type
Main Breaker
AbilityOne
No
ADA Compliant
No
Electrical Box Type
Load Center
Maximum Amperage
150 amp
Enclosure Type
Enclosed
NEMA Rating
1
Circuit Breaker Type
Other
Voltage
120/240 V
Assembled Product Height
33.78 in.
Mounting Location
Surface
Material
Brass
Features
Clean Gutter
Assembled Product Width
14.25 in.
Indoor/Outdoor
Indoor
GSA Approved
No
Mount Type
Flush, Surface
TAA/BAA Compliant
Yes
Number of Phases
1
Product Overview
The Square D Homeline Value Pack 150 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-in mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
