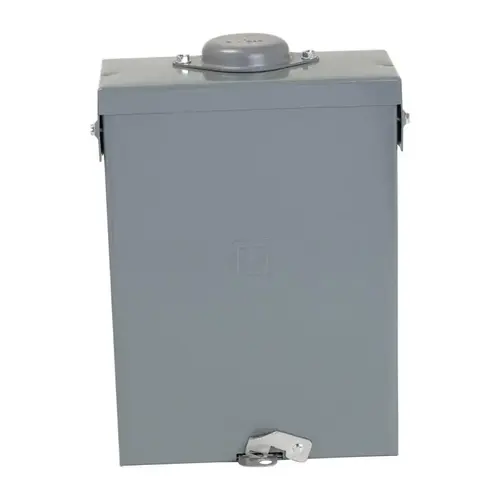

Square D HOM612L100RBCP Homeline Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 3R Enclosure, Gray
Item #: HOM612L100RBCP by SQUARE D
UPC #: 047569071256
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Includes a rainproof outdoor cover
- Accommodates plug-on secondary surge arrestor
- Main feeders terminate from the top, feeders can enter from any direction, however, device cannot be rotated
- Rainproof cover features a stainless steel hasp that is easily padlocked for safety from theft
- Accommodates plug-on secondary surge arrestor (sold separately)
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- Single phase
Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
4.70
Defective Code
A
Breakers Included
No
Number of Spaces
6
Maximum Number of Circuits
12 circuits
Width
10.20
Circuit Protection Type
Main Lug
Sub Brand
HomeLine
Mounting Type
Plug
Indoor or Outdoor
Outdoor
Volts
120/240 V
Packaging Type
Boxed
Product Type
Main Lug Load Center
AMPS
100 amps
Each Weight
10.060 LB
Velocity
C
Hazardous Material
No
UNSPSC
39121101
Alternative UPC
785901071259
Length
14.50
ECCN
EAR99
Country Origin Code
MX
Cable Size
8 to 1 AWG
Interrupt Rating
10 kA
Wiring Configuration
3-wire
Cover/Lid Type
Surface
Enclosure Type
NEMA 3R
Breaker/Load Center Type
Main Lug
Nomenclature
HOM612L100RBCP 100A LOAD CENTR
Bus Bar Material
Aluminum
Color
Gray
Number of Circuits
12
Number of Phases
1
Finish
Baked Enamel
Current Rating
100 A
Depth
4.27"
Voltage
120/240
Wire Size
(8) #1 AWG (Copper, Aluminum)
Amperage
100
Phase
Single
Certification
UL Listed
Series
Homeline
Mount Type
RB
Max Number of Circuits
12
Material
Brass
For Use With
Compatible With Square D Homeline Standard Circuit Breakers
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage
100 amp
NEMA Rating
3R
Features
Single Phase
MADE IN THE USA
No
Recommended Environment
Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
4.27 in.
Assembled Product Height
12.65 in.
Assembled Product Width
8.88 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCNTR MAIN LUG HOM OUT 100A
Outdoor main lug load center, 100 A, 6 space and 12 circuits. Can be wired for underground or overhead feeds with a 2-1/2 in hub on the top and a 1-1/2 in knockout on the bottom. NEMA type 3R enclosure resists rain for durable performance. ANSI certified and UL listed.
