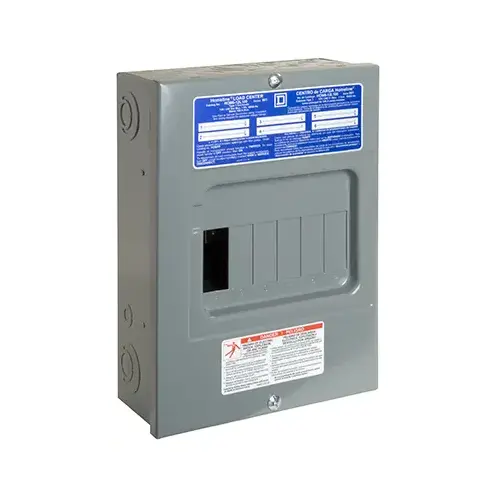

Square D HOM612L100SCP Homeline Load Center, 100 A, 6 -Space, 12 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
Item #: HOM612L100SCP by SQUARE D
UPC #: 047569071232
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Single phase
- Accommodates plug-on secondary surge arrestor
- Overhead/underground feed simply by rotating the device before installing
- Surface mount device cover without a door
- Accommodates plug-on secondary surge arrestor (sold separately)
- Includes a surface mount cover
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
4.20
Defective Code
A
Breakers Included
No
Number of Spaces
6
Maximum Number of Circuits
12 circuits
Width
10.50
Circuit Protection Type
Main Lug
Sub Brand
HomeLine
Mounting Type
Plug
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Boxed
Depth
4.2"
Product Type
Main Lug Load Center
AMPS
100 amps
Each Weight
7.000 LB
Velocity
C
Hazardous Material
No
UNSPSC
39121101
Length
14.80
ECCN
EAR99
Country Origin Code
MX
Finish
Baked Enamel
Color
Gray
Bus Bar Material
Aluminum
Number of Circuits
12
Breaker/Load Center Type
Main Lug
Enclosure Type
NEMA 1
Current Rating
100 A
Cable Size
8 to 1 AWG
Interrupt Rating
10 kA
Nomenclature
HOM612L100SCP LOADCENTER 100A
Cover/Lid Type
Flush
Number of Phases
1
Wiring Configuration
3-wire
Voltage
120/240
Wire Size
(8) #1 AWG (Copper, Aluminum)
Amperage
100
Phase
Single
Certification
UL Listed
Series
Homeline
Mount Type
Surface
Max Number of Circuits
12
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Indoor
Load Center Type
Combination
Maximum Amperage
100 amp
NEMA Rating
1
Features
Surface Mount Cover Included,Comes with a durable surface mount cover for added convenience and protection
MADE IN THE USA
No
Recommended Environment
Indoor
Electrical Box Type
Load Center
Assembled Product Depth
3.8 in.
Assembled Product Height
12.57 in.
Assembled Product Width
8.88 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOADCNTR MAINLUG HOM INDR 100A
Main lug indoor load center, 100 A, 6 space/12 circuit. NEMA type 1 enclosure. Single phase, 3-wire, solid neutral. Expandable load center capacity with the use of tandem or quad breakers. CSA approved for vertical, horizontal or inverted mounting. Accepts aluminum or copper conductors. Approved to only accept Canadian Homeline breakers.
