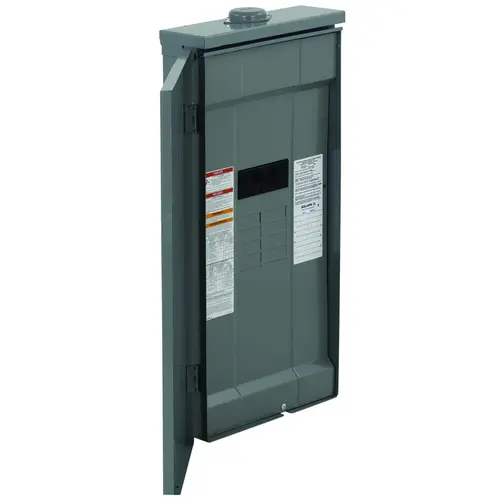

Square D HOM816M200PFTRB Load Center, 16 -Pole, 200 A, 8 -Space, NEMA 3R Enclosure, Flush, Surface Mounting
Item #: HOM816M200PFTRB by SQUARE D
UPC #: 785901973959
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
5.00
Defective Code
A
Breakers Included
No
Number of Spaces
8
Maximum Number of Circuits
16 circuits
Width
15.50
Circuit Protection Type
Single Pole
Sub Brand
HomeLine
Mounting Type
Flush Surface
Indoor or Outdoor
Outdoor
Volts
120/240 V
Packaging Type
Boxed
Depth
4-1/2"
Product Type
Main Breaker Load Center
AMPS
200 amps
Each Weight
32.500 LB
Velocity
X
Hazardous Material
No
UNSPSC
39121101
Length
31.70
Country Origin Code
US
Bus Bar Material
Aluminum
Enclosure Type
NEMA 3R
Current Rating
200 A
Cable Size
4 AWG
Interrupt Rating
22 kA
Number of Poles
16
Nomenclature
HOM816M200PFTRB LOADCNTR 200A
Cover/Lid Type
Surface
Number of Phases
1
Wiring Configuration
3-wire
Voltage
120/240
Wire Size
#4-250 AWG/kcmil (Copper, Aluminum)
Amperage
200
Phase
Single
Certification
UL Listed
Series
Homeline
Mount Type
RB
Max Number of Circuits
16
Material
Brass
For Use With
Compatible With Square D Homeline Circuit Breakers
Color
Gray
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Outdoor
Load Center Type
Main Breaker
Maximum Amperage
200 amp
NEMA Rating
3R
Number of Circuits
16
Features
Clean Gutter
MADE IN THE USA
Yes
Recommended Environment
Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
4.52 in.
Assembled Product Height
29.86 in.
Assembled Product Width
14.75 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
LOAD CNTR OUTDOOR 200A 8 SPACE
Specifications:
Specifications:
Includes: PK15GTAL Ground Bar and Surface Cover
Single phase, 3-wire, insulated/bonded split neutral. 200 A, 8 spaces/16 circuits maximum. 120/240 VAC. 10,000 AIR. For mobile homes and farm applications. Overhead or underground feeds and offers feed-thru lugs. Plated aluminum bus bar. Has a 22,000 maximum short circuit current rating. Provided equipment: circuit breaker [space(1) 2P 200 A 120/240 VAC main supply ready assembled and grounding bar [space(1) ready assembled. UL listed.
