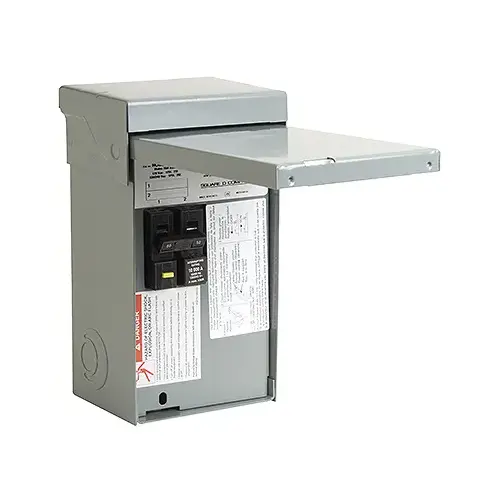

Square D HOME250SPA Homeline 50 Amp 2-Space 4-Circuit Spa Panel Main Lug Load Center
Item #: HOME250SPA by SQUARE D
UPC #: 785901230540
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Main lug load center designed for applications up to 50 Amp 120/240 VAC
- 3.0/7.5 HP 240 VAC 3 phase (standard/maximum) or corner grounded delta system refer to data bulletin 2700DB0202
- Features: HOM250GFI- 50 Amp 2-pole homeline ground fault circuit interrupter installed in (HOM2-4L50R) - 50 Amp outdoor load center
- Cover can be padlocked
- Homeline hot tub/pool/spa pack provides protection for outdoor circuits such as hot tub, fountains, swimming pools or spas
- Painted, zinc-coated steel outdoor enclosure
Warranty
Square D warrants equipment manufactured by it and sold through authorized sales channels to be free from defects in materials and workmanship for eighteen (18) months from date of invoice by Square D or its authorized sales channel.
Pack Size
1
UNSPSC
39121101
Height
4.40
Length
9.50
Width
5.40
Hazardous Material
No
ECCN
EAR99
Country Origin Code
MX
AMPS
50 amps
Mounting Type
Bolt-On Mount
Volts
120/240 V
Depth
4.4"
UL Listed
Yes
Number of Spaces
2 space
Packaging Type
Boxed
Indoor or Outdoor
Outdoor
Breakers Included
Yes
Circuit Protection Type
SPAS
Defective Code
A
Each Weight
6.200 LB
Maximum Number of Circuits
4 circuits
Returnable
Yes
Velocity
C
Product Type
Main Lug Load Center
Voltage
120/240
Wire Size
#8-2 (Aluminum), #8-2 (Copper)
Amperage
50
Phase
Single
Certification
UL Listed
Enclosure Type
Outdoor
Series
Homeline
Mount Type
Surface
Max Number of Circuits
2
Material
Brass
For Use With
Square D Spa Panel
Color
Gray
Package Quantity
1
Mounting Location
Surface
ADA Compliant
No
Circuit Breaker Type
Other
Indoor/Outdoor
Outdoor
Load Center Type
Main Lug
Maximum Amperage
50 amp
NEMA Rating
3R
Number of Circuits
4
Number of Phases
1
Features
Padlocked
MADE IN THE USA
No
Recommended Environment
Outdoor
Electrical Box Type
Load Center
Assembled Product Depth
4 in.
Assembled Product Height
9.38 in.
Assembled Product Width
4.88 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Product Overview
The Square D Homeline pack includes a 50 Amp Homeline Outdoor Metallic Load Center and an installed Square D Homeline breaker - HOM250GFI. Along with many other features and benefits, the Square D HOM250GFI 2-Pole Ground Fault Circuit (GFCI) Breaker protects single pole and 2 pole loads against ground and overcurrent faults. The load center and GFCI breaker provide protection for outdoor circuits such as hot tubs, fountains, swimming pools or spas.
- Homeline hot tub/pool/spa pack provides protection for outdoor circuits such as hot tub, fountains, swimming pools or spas
- Includes: HOM250GFI- 50 Amp 2-pole Homeline ground fault circuit interrupter installed in (HOM2-4L50R) - 50 Amp outdoor load center
- Painted, zinc-coated steel outdoor enclosure
- Cover can be padlocked
- Main lug load center designed for applications up to 50 Amp 120/240 VAC
- 3.0/7.5 HP 240 VAC 3 phase (standard/maximum) or corner grounded delta system refer to data bulletin 2700DB0202
