Features
Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
Pack Size
1
Hazardous Material
No
Velocity
X
Each Weight
1.000 LB
CSA Listed
No
AMPS
20 Amps
Product Type
Circuit Breaker
Number of Poles
2-Pole
Depth
2.98"
Packaging Type
Bulk
Volts
240 V
Indoor or Outdoor
Indoor
Mounting Type
Plug-In
Sub Brand
HomeLine
Circuit Protection Type
Tandem
Width
2"
Number of Spaces
2 space
Defective Code
A
Height
3.24"
UL Listed
Yes
Returnable
Yes
UNSPSC
39121601
Voltage
120/240
Frame Size
2-Space
Wire Size
#14-8 AWG
Amperage
20/20/20
Width (in)
1
Certification
ANSI/UL Listed
Mount Type
Plug-In
Interruption Type
Standard Trip
Material
Brass
For Use With
Homeline load centers and CSED devices
Package Quantity
1
ADA Compliant
No
Circuit Breaker Type
Other
Maximum Amperage
20 Amp
MADE IN THE USA
No
Tripping Mechanism
Thermal-Magnetic
Assembled Product Depth
2.98 in.
Assembled Product Height
3.13 in.
Assembled Product Width
2 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Space Required
2
Mounting Location
Panel
Maximum Operating Temperature
104 °F
Reset Actuator Type
Toggle Switch
Terminal Connection Type
Box Lugs
Reset Type
Manual
Breaking Capacity
10 kA
Product Overview

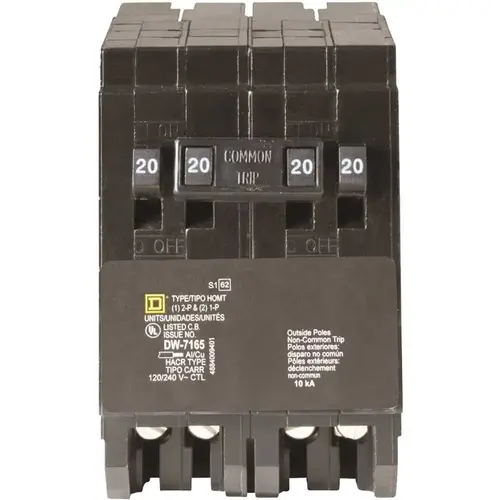

The Square D by Schneider Electric Homeline Quad-Pole Tandem Circuit Breaker consists of (2) single-pole, 20 Amp and (1) double-pole, 20 Amp breakers. Requiring only 2 pole spaces, it is used for overload and short-circuit protection of your electrical system. This breaker is compatible with Homeline load centers and CSED devices. The ANSI-certified and UL-listed unit is rated for 120/240 VAC and 10,000 Air. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class. Homeline circuit breakers are the best in class. Designed exclusively for the residential market, Homeline products offer everything you need to distribute electricity throughout your home.
- Homeline 2-20 Amp single-pole 1-20 Amp double-pole quad tandem circuit breaker
- Plug-on design, easy to install
- Compatible with Homeline load centers and CSED devices
- 120/240-Volt AC
- 10,000 AIR
- Limited lifetime warranty
