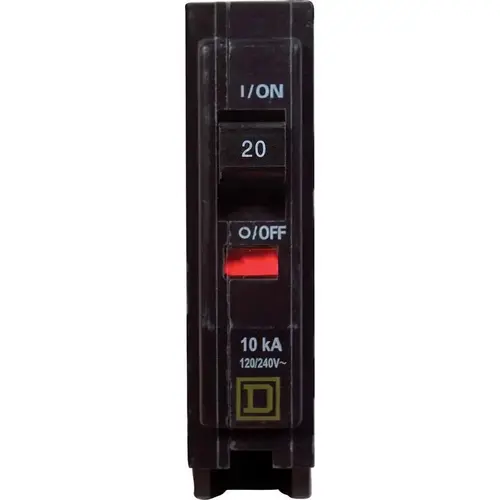

Square D QO120CP QO Circuit Breaker, Mini, 20 A, 1 -Pole, 120/240 VAC, 48 VDC, Fixed Trip, Plug Mounting
Item #: QO120CP by SQUARE D
UPC #: 047569837999
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Thermal-magnetic tripping mechanism
- Shielded copper bus bar
- Use for overload and over-current protection of your electrical system
- Available in single and three phase
- 120/240 VAC
- Ground bar is included with all main lugs load centers with three mounting locations
- ANSI certified and UL listed
- Convertible mains let you meet changing job-site requirements
- Compatible with QO load centers, CSED devices and NQOD panel boards
- Tangential main service knockouts
- QO 20 Amp one-pole circuit breaker
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- The QO 20 Amp one-pole circuit breaker is designed for overload and over-current protection of your electrical system through its thermal-magnetic tripping mechanism
- 10,000 AIR
- Exclusive Visi-Trip red indicator
- The breaker offers a Visi-Trip indicator to let you easily identify which circuit is out in the load center
- Quick make - quick break mechanism
- Plug-on design, easy to install
Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
0.62
Defective Code
A
Width
0.59
Circuit Protection Type
Plug In
Sub Brand
QO
Mounting Type
Plug
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Sleeve
Depth
3-3/16"
Allocation Quantity
10
Number of Poles
1
Product Type
Circuit Breaker
AMPS
20 Amps
CSA Listed
Yes
Each Weight
0.280 LB
Velocity
A
Hazardous Material
No
UNSPSC
39121601
Alternative UPC
785901150190
Length
1.40
ECCN
EAR99
Country Origin Code
US
Dimensions
0.75 in W x 2.91 in D x 3 in H
Type
Mini
Operating Temperature
104 deg F
Wire Size
14 to 18 AWG
Number of Phases
1
Number of Spaces
1
Terminal Type
Pressure Contact
Interrupt Rating
5 10 kA
Operating Frequency
50/60 Hz
Trip Type
Fixed
Nomenclature
QO120CP PLUGON CIRC BRKR20A 1P
Current Rating
20 A
Voltage
120/240
Frame Size
1-Space
Amperage
20
Width (in)
0.75
Certification
ANSI/UL Listed
Mount Type
Plug-In
Interruption Type
Standard Trip
Product Overview
BREAKER CIRCUIT 1P 3/4IN 20AMP
All QO circuit breakers are equipped with the Visi-Trip indicator. When a Visi-Trip circuit breaker trips, the handle snaps to a midpoint position between "OFF" and "ON" and a highly visible, red indicator easily identifies the tripped breaker. This enables you to easily distinguish which breaker has tripped in a load center that may contain up to 60 different circuit breakers. QO circuit breakers have features no other manufacturer can offer. They come in many different sizes and can meet the needs of virtually every function in your home or business. These types of quality, industry exclusive products keep the Square D brand ahead of the competition and are builders' and electrical contractors' first choice in electrical protection.
