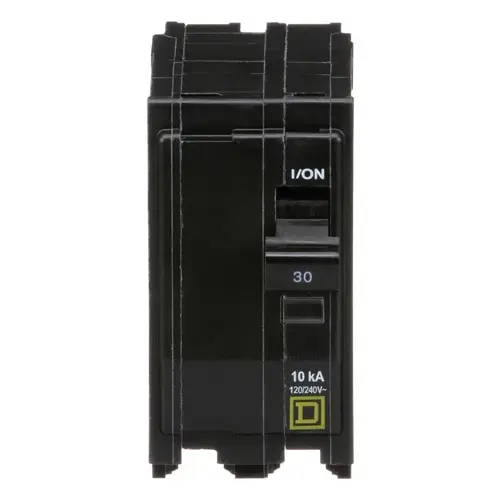

Square D QO230CP QO Circuit Breaker, In-Line, 30 A, 2 -Pole, 120/240 VAC, 48 VDC, Plug Mounting, Almond
Item #: QO230CP by SQUARE D
UPC #: 047569838033
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 120/240-Volt AC
- Plug-on design, easy to install
- Compatible with QO load centers, CSED devices and NQOD panel boards
- 10,000 AIR
- Limited Lifetime Warranty
- QO 30 Amp two-pole circuit breaker
- ANSI certified and UL listed
- Compatible with QO load centers, CSED's and NQOD panel boards
Warranty
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed.
Pack Size
1
Returnable
Yes
UL Listed
Yes
Height
1.50
Defective Code
A
Width
3.50
Circuit Protection Type
Plug In
Sub Brand
QO
Mounting Type
Plug
Indoor or Outdoor
Indoor
Volts
120/240 V
Packaging Type
Sleeve
Depth
2.91"
Allocation Quantity
6
Number of Poles
2
Product Type
Circuit Breaker
AMPS
30 Amps
CSA Listed
Yes
Each Weight
0.540 LB
Velocity
A
Hazardous Material
No
UNSPSC
39121601
Length
3.00
ECCN
EAR99
Country Origin Code
US
Dimensions
1.5 in W x 2.91 in D x 3 in H
Type
In-line
Color
Almond
Operating Temperature
104 deg F
Wire Size
14 to 18 AWG
Number of Spaces
2
Interrupt Rating
5 10 kA
Operating Frequency
50/60 Hz
Nomenclature
QO230CP PLUGON BREAKER30A 2P
Actuator Type
Magnetic Thermal
Current Rating
30 A
Voltage
120/240
Frame Size
2-Space
Amperage
30
Width (in)
0.75
Certification
ANSI/UL Listed
Mount Type
Plug-On
Interruption Type
Standard Trip
MADE IN THE USA
No
Minimum Operating Temperature
77 F
Package Quantity
1
Tripping Mechanism
Thermal-Magnetic
Space Required
2
For Use With
Square D QO Electrical Panels
Assembled Product Depth
2.9 in.
AbilityOne
No
ADA Compliant
No
Maximum Amperage
30 Amp
Circuit Breaker Type
Standard Circuit Breaker
Assembled Product Height
3 in.
Terminal Connection Type
Pressure Plate
Material
Other
Assembled Product Width
1.5 in.
GSA Approved
No
Maximum Operating Temperature
104 F
TAA/BAA Compliant
Yes
Breaking Capacity
10 kA
Product Overview
BREAKER CIRC SQ D 30A 120/240V
The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D exclusive Qwik-Open protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.
