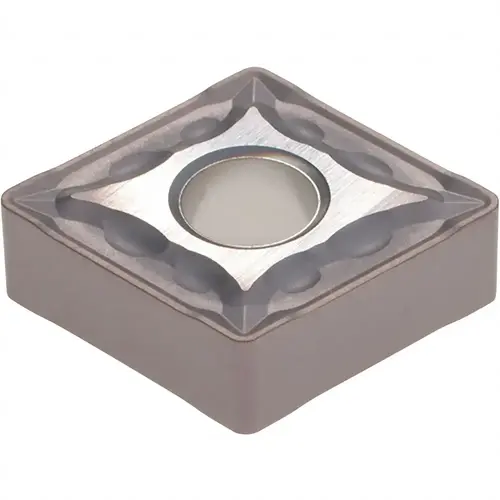

Turning Insert: CNMG432EMU AC6040M, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 196DAFI-XCP10Click To Copy Turning Insert: CNMG432EMU AC6040M, Solid Carbide - pack of 10

Item #: 196DAFI-XCP10 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$165.44

/package
SAVE UP TO 16.54

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

CNMG120408N-MU

Manufacturer Grade

AC6040M

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2031

Tolerance Code

M

Insert Size Code

432

Insert Style

CNMG

Chip Breaker

EMU

Insert Shape Code

C

Clearance Code

N

Insert Shape

Diamond

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Neutral

Rake

Negative

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.5079

Insert Holding Method

Clamp

Vendor Drop Ship

N

Primary Workpiece Material Code

M

Primary Workpiece Material

Stainless Steel

Corner Radius (Decimal Inch)

0.0313

Coating/Finish

Coated

Coating Process

PVD

Series

CN

Insert Material

Solid Carbide

Included Angle

80.0

Standards

ANSI

ANSI Code

CNMG432EMU

Product Overview
Turning Insert: CNMG432EMU AC6040M, Solid Carbide Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CN
