Thread Forming Tap: M4x0.70 Metric Coarse, 6H Class of Fit, Bottoming, High Speed Steel, Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

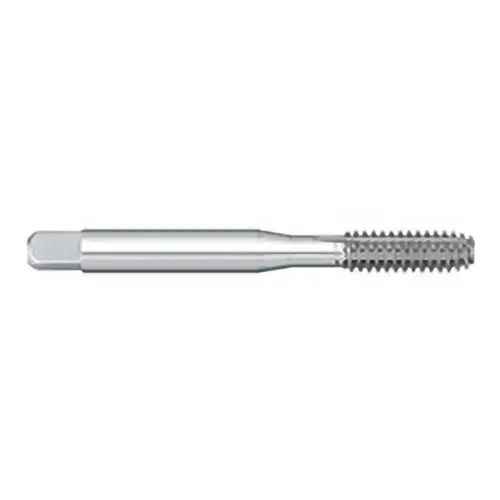

TITAN TT89804 Thread Forming Tap: M4x0.70 Metric Coarse, 6H Class of Fit, Bottoming, High Speed Steel, Uncoated

Item #: TT89804 by TITAN

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$24.28

/each
SAVE UP TO 2.43

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel

Application

Blind Hole Threading

Overall Length (mm)

53.98

Thread Direction

Right Hand

Series

898

Thread Size (mm)

M4x0.7

Thread Standard

Metric

Chamfer

Bottoming

Class Of Fit

6H

Coating/Finish

Bright/Uncoated

Coolant Through

No

Overall Length (Decimal Inch)

2.1250

Shank Diameter (Decimal Inch)

0.1680

Shank Diameter (mm)

4.2699999999999996

Square Size (Decimal Inch)

0.1310

Square Size (mm)

3.33

Thread Length (Decimal Inch)

0.7500

Thread Length (Inch)

3/4

UNSPSC Code

23241600

Vendor Drop Ship

N

Chamfered Threads

2.5P

Thread Limit

D7

Oil Grooves

1

Product Overview
Thread Forming Tap: M4x0.70 Metric Coarse, 6H Class of Fit, Bottoming, High Speed Steel, Uncoated 3/4" Thread Length, 2-1/8" OAL, D7, Series 898
