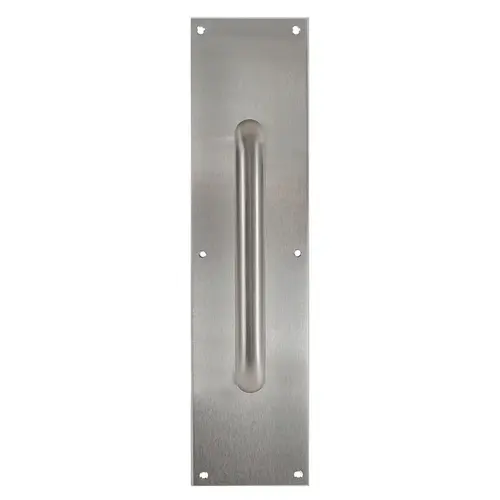

Trimco 1018-2B-710CU 1017-3B Pull Plate Steralloy (Silver)

1018Heavy Duty Pull Plate

The Trimco's Heavy Duty Pull Plates combine the 1001 Series Push Plate with a large offering of different grip styles. These ADA compliant pull plates are available in 3" x 12", 3-1/2" x 15" and 4"x16" standard plate sizes and are mated with your choice of cast traditional or tapered pulls, half-round, 3/4 round, full round or bent bar type pulls. Custom plate sizes and finishes are also available.

Applications:

• Retail & Strip Malls

• Commercial & Industrial Buildings

• Multifamily & Mixed-Use

• Government & Military Facilities

• Public Buildings & Facilities

Features:

• Combines 1001 Series Plate with a wide range of grips.

• Plates are made of heavy duty .050” stainless steel, brass, or bronze and are heavy beveled on all four sides.

• Standard plate sizes include 3" x 12", 3-1/2" x 15" and
  4" x 16". Custom sizes and finishes also available.

• Available in a wide range of architectural materials and finishes including anti-microbial copper alloys.

Specifications: Standards:

• BHMA J405
• ANSI A117.1
• Accessibility Code (ADA Compliant)

Series:

• 1010 - Cast Traditional Pull
• 1012 - Cast Tapered Pull
• 1013 - 3/4" Round Pull
• 1014 - Half-Round Pull
• 1015 - Bar Pull
• 1017 - 3/4" Dia. Round Pull
• 1018 - 1" Dia. Round Pull

Material Options:

• BR – Brass
• BZ – Bronze
• PL – Chrome Plated Brass or Bronze Castings
• AI – Aluminum
• SS – Stainless Steel
• CU+ – Copper Alloy

Warranty:

• Limited Lifetime Warranty

Finishes:

• 605 - Polished Brass
• 606 - Satin Brass, DulL
• 612 - Satin Bronze
• 613 - Oil Rubbed Bronze
• 625 - Polished Chrome
• 626 - Satin Chrome
• 628 - Satin Aluminum, Clear Anodized
• 629 - Polished Stainless Steel
• 630 - Satin Stainless Steel
• 706 - Sterose Copper (rose)
• 710 - Steralloy Copper (silver)
• SPEC - Special Options Available
