Tucker Auto-Mation 200-1004 SW.19 Low Energy Swinging Door Operator

SW19Low Energy Swinging Door Operator

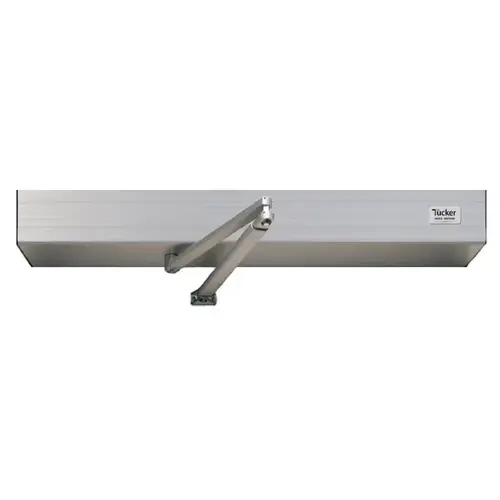

TUCKER'S SWl9 offers state-of-the-art micro-processed controllers with electro-mechanical drives. The unique slim-line design offers non-handed operation, full mechanical stops, and numerous interface options for sensors, push-plates, fire alarms and electric locks. The unit includes on-board diagnostics to simplify troubleshooting when needed. The unit can be configured for a surface mounted (push or pull), application. The Tucker Advanced Programmer (TAP) is provided as an option to access additional programming features.

The all in one entrance solution:

• Powder coated steel end caps

• Non-handed

• Self-tuning, self learning

• Extremely silent

• Complies with ANSI A159.19 and A159.10

• UL - Certified for use as fire door operators
• (3 hour rating)

• Complies with all US and Canadian ADA requirements

• Reverse on obstruction

• Choice of spring or power close

Features:

• Min 5 sec from close to open

• Stay open for 5 sec - up to 30 sec

• Force: 15lbs - (6.8kg)

• Push or pull (in door out swing)

• Activation: Knowing act (push plates)

• Door mounted safety device: Optional (torpedo - one)

Specifications: Single Width (Single-W):

• 39" / 45" / 47" / 51"
• (990mm / 1143mm / 1194mm / 1295mm)

Double Width (Double-W):

• 75" / 87" / 91" / 99"
• (1905mm / 2210mm / 2311mm / 2514mm)

Power Supply:

• 115 VAC (+6%, -10%) 60Hz

Power Consumption:

• 100W

Current Consumption:

• 1A

Motor:

• 24 VDC Permanent Magnet

Header Dimensions:

• 4 1/8" x 4 3/4" (H x D)
• (105mm x 120mm)

Fuse Protection:

• 3.5A Fuse
• (F1 located on 1/0 Board)

Weight:

• 22lbs - 10kg
• Per Operator Assembly

Ambient Operating Temperature:

• -4°F to 131°F
• (-20°C to +55°C)

Ingress Protection:

• NEMA 3R (IP23)
• (Protection from spray water up to 60 vertical - ie. Rainstorm)

Push Arm Max Door Weight:

• Door 36" : 438lbs - 914mm : 199kg
• Door 42" : 328lbs - 1067mm : 149kg
• Door 44" : 299lbs - 1117mm : 135kg
• Door 48" : 254lbs - 1219mm : 115kg

Pull Arm Max Door Weight:

• 342lbs - 155kg
• 256lbs - 116kg
• 234lbs - 106kg
• 198lbs - 90kg

24 VDC Accessories Power Supply:

• 24 VDC / 500mA max.

24 VDC Electronic Power Supply:

• 24 VDC / 500mA max.

Adjustable Speeds and Timers:

• Opening Speed
• Closing Speed
• Hold Open Time
• Unpowered

Standard Selector Switch Functions:

• Automatic
• Hold Open
• Manual (Inactive)

Standard Control Inputs:

• Interior Activation
• Exterior Activation
• Emergency Shutdown
• Alarm Output
• "Stop" Safety Device (door-mounted)
• Safety Device Input

Quick Disconnects:

• TAP-Controller (optional)

Color Options:

• Clear (standard)
• Bronze (standard)
• Painted (RAL # Required)
