Turning Insert: CNMG 643 TM T9215, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tungaloy 6773859-XCP10 Turning Insert: CNMG 643 TM T9215, Solid Carbide - pack of 10

Item #: 6773859-XCP10 by Tungaloy

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$346.46

/package
SAVE UP TO 34.65

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CNMG-TM

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0472

Manufacturers Catalog Number

6773859

Material Grade

P10

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.7500

Width (Inch)

3/4

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7600

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Maximum Depth of Cut (Decimal Inch)

0.1969

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Corner Radius (Inch)

3/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

-6

Full Radius

No

Insert Shape Code

C

Chip Breaker

TM

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3120

Relief Angle

0

Inscribed Circle (Inch)

3/4

Multi-Use Application

Turning

Chip Breaker Operation

Roughing

Manufacturer Grade

T9215

ISO Size Code

190612

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

643

ISO Insert Code

CNMG190612

Proprietary Coating Designation

Multilayer Coating

Iso Code

CNMG 643 TM

ANSI Insert Code

CNMG643

Product Overview

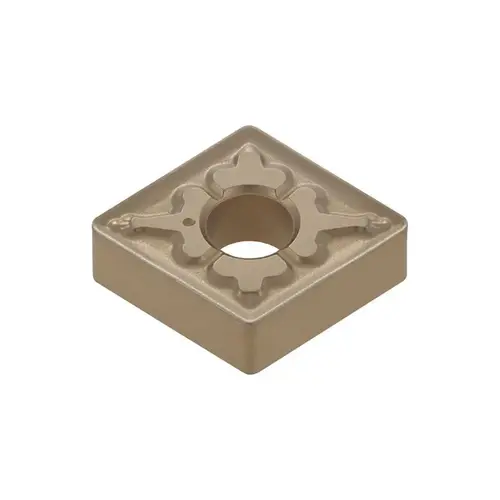

Turning Insert: CNMG 643 TM T9215, Solid Carbide TiN, TiCN, Al2O3 & TiN Coated, Neutral, 0.76" Long, 3/4" Inscribed Circle, 0.0469" Corner Radius, 80 degree Diamond, Series T9200
