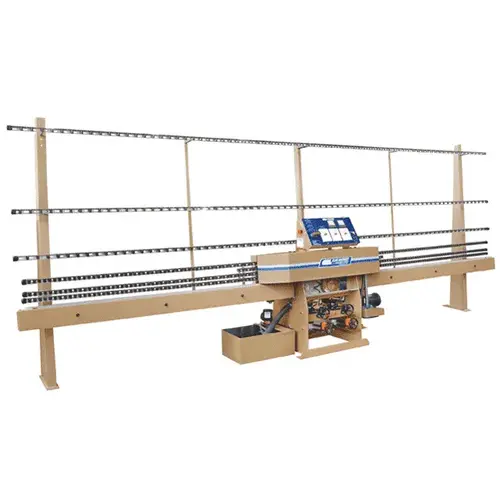

CRL VE2PLUS2 Two-Spindle Automatic Glass Edging Machine
Item #: VE2PLUS2 by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 230 Volt AC, 3 Phase Power
- Edges Glass Up to 100" (2.54 m) Per Minute
- Grind and Polish Glass in One Pass
- Produces Flat Edges with Seams, Pencil Edges (Round), and Miter Edges on Glass from 1/8" to 1/2" (3 to 12 mm) Thick
- Recirculating Coolant Eliminates Dust
- Save Time and Material Over Belt Machine Edging
Height
88" (2.24 m)
Depth
31 in (787.4 mm)
Length
225" (5715 mm)
Width
18 ft.-6 in. (5.6 m)
Product Overview
Our CRL VE2PLUS2 Automatic Glass Edging Machine offers you added edging capacity not found elsewhere. You can place two wheels on each spindle, quickly repositioning them from 1/4" (6 mm) flat and seam, for example, to 1/2" (12 mm) pencil edge. You don't have to do a complete wheel changeover, saving you labor and production time. The new color coded dial indicator system allows exact wheel positioning every time and the fastest adjustments of any peripheral machine.
We've lowered the pass line to 28-1/2" (724 mm) making it even easier for the operator to load glass. Labor efficiency increases because of reduced fatigue. Processes 1/8" to 1/2" (3 to 12 mm) glass up to 100" (2.54 m) per minute. The VE2PLUS2 is designed to edge the most common range of glass thickness and sizes. Pencil, Miter or Flat and Seam profiles on a variety of thicknesses are possible.
Our VE2PLUS2 can be placed within one foot of the wall for minimum impact on floor space. To achieve this space savings, the coolant tank and all machine adjustments were moved to the front of the machine. This simplifies all machine adjustments and normal equipment maintenance. The VE2PLUS2 has the largest standard glass rack in the industry, so you'll appreciate the 7' (2.13 m) long conveyors. The VE2PLUS2 is the only U.L. approved two spindle machine on the market. We also meet or exceed OSHA's requirements for machine safety.
CONTROLS: All controls are built to OSHA requirements, utilizing CE, CSA and UL Certified components. Wiring for three phase, 60 cycle, 230V AC power.
WHEELS (Included):
Diamond Wheel - One 7" (178 mm) for 1/8" to 1/4" (3 to 6 mm) Flat and Seam
Polish Wheel - One 8" x 3/4" (203 x 19 mm) Somaca Orange Wheel
UTILITIES:
Electrical - Four Motors, Total 5.8 HP (4.32 kw)
Voltage - Three Phase, 60 Cycle, 230V AC
Power - 25 AMP @ 230V AC
Converter available to operate VE2PLUS2 at Single Phase, 60 Cycle, 220V AC.
SPECIFICATIONS:
Height: 88" (2.24 m)
Footprint: 225" x 30" (5.72 m x 762 mm)
Shipping Weight: 1800 Lbs. (816 kg)
Conveyor Height: 28-1/2" (724 mm)
Minimum glass size is 3.5" x 3.5" (89 x 89 mm)
Glass strips from 2" x 24" (50 x 609 mm)
We've lowered the pass line to 28-1/2" (724 mm) making it even easier for the operator to load glass. Labor efficiency increases because of reduced fatigue. Processes 1/8" to 1/2" (3 to 12 mm) glass up to 100" (2.54 m) per minute. The VE2PLUS2 is designed to edge the most common range of glass thickness and sizes. Pencil, Miter or Flat and Seam profiles on a variety of thicknesses are possible.
Our VE2PLUS2 can be placed within one foot of the wall for minimum impact on floor space. To achieve this space savings, the coolant tank and all machine adjustments were moved to the front of the machine. This simplifies all machine adjustments and normal equipment maintenance. The VE2PLUS2 has the largest standard glass rack in the industry, so you'll appreciate the 7' (2.13 m) long conveyors. The VE2PLUS2 is the only U.L. approved two spindle machine on the market. We also meet or exceed OSHA's requirements for machine safety.
CONTROLS: All controls are built to OSHA requirements, utilizing CE, CSA and UL Certified components. Wiring for three phase, 60 cycle, 230V AC power.
WHEELS (Included):
UTILITIES:
Electrical - Four Motors, Total 5.8 HP (4.32 kw)
Voltage - Three Phase, 60 Cycle, 230V AC
Power - 25 AMP @ 230V AC
Converter available to operate VE2PLUS2 at Single Phase, 60 Cycle, 220V AC.
SPECIFICATIONS:
Height: 88" (2.24 m)
Footprint: 225" x 30" (5.72 m x 762 mm)
Shipping Weight: 1800 Lbs. (816 kg)
Conveyor Height: 28-1/2" (724 mm)
Minimum glass size is 3.5" x 3.5" (89 x 89 mm)
Glass strips from 2" x 24" (50 x 609 mm)
