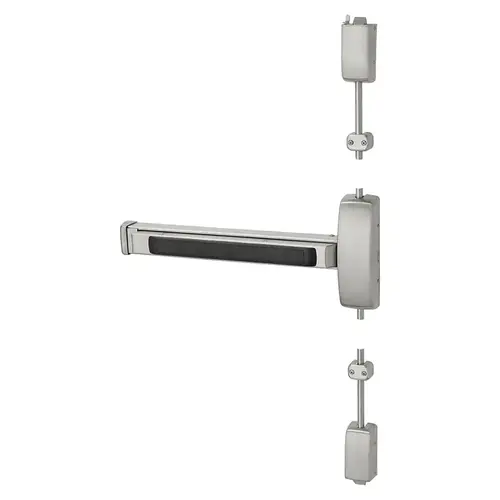

Sargent 16-8762E RHR 15 Exit Device Satin Nickel Plated Clear Coated
Item #: 16-8762E RHR 15 by Sargent
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths:E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Hand
RHR
Color
Satin Nickel Plated Clear Coated
Color Code
619/US15
Door Thickness
1-3/4" to 2-1/4"
Door Width
24 In. to 32 In.
Device Length
30 In.
Door Height
84 In.
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
6"
Package Length
38"
Package Volume
1710
Package Width
7.5"
ANSI Number
6
Device Type
Surface Vertical Rod
Dogging Options
Cylinder Dogging
Includes Trim
No
Mechanical Function
Pull Plate Thumb Piece Storeroom
Minimum Stile Size
4-1/2" with Trim, 3-1/2" without Trim
Package Qty
1
Physical Appearance
Wide Stile Pushpad
Strike Bottom
624
Strike Top
646
Base Material
Brass or Bronze
Door Material
Metal or Wood
Grade
Grade 1
Handing
Right Hand Reverse
Surface Vertical rod Exit Device, Storeroom Thumbpiece, Less Trim, 30", Cylinder Dogging, Satin Nickel
The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
Has two point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicty, strength, durability, aesthetics, and innovation. The top and bottom latchbolt projection is adjustable through the center case.
