LCN 4040XPT-STD RH US26D Door Closer Satin Chromium Plated
Item #: 4040XPT-STD RH US26D by LCN
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Grade
Grade 1
Application
Track Arm
Cover
Metal
Type
Surface
Hand
RH
Color
Satin Chromium Plated
Color Code
626/US26D
Case Length
16.5"
Screw Type
Self Tapping
Mounting Style
Slide Track
Hold Open
Without Hold Open
Arm Type
Slide Track Arm Standard
Fire Rated
3 Hours {A}
Origin
USA
Closer Size
Non-Sized
BAA Qualified
Yes
Package Height
4.5"
Package Length
16"
Package Volume
306
Package Width
4.25"
Back Check
Adjustable
Case Height
9.25"
Case Volume
1488.09375
Case Width
9.75"
Degree Swing
120¼
Delay
No
Mounting Location
Push or Pull Side
Package Qty
1
Product Height
3.75"
Product Length
12"
Product Width
2.25"
Restrictions
None
Special Marks
Fire rated 3 Hours {A}
Special Rust Inhibitor
No
Through Bolts
No
Base Material
Brass or Bronze
Handing
Right Hand

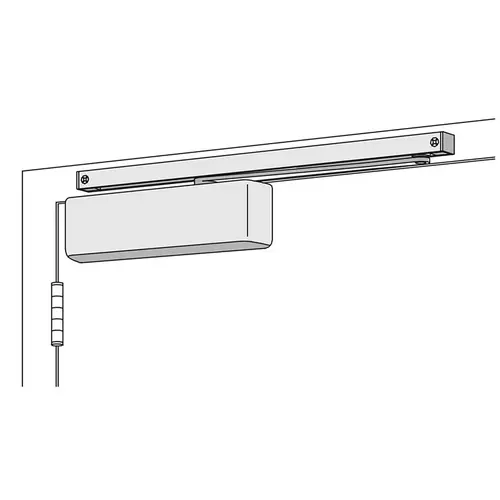

Track Arm Door Closer, Satin Chromium Plated
The 4040XP is LCN's most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications. Featuring a cast iron body, forged steel arm, double heat treated steel pinion, and all weather fluid. The non-sized cylinder is adjustable for interior doors to 5'0" and exterior doors to 4"0". Closers meet ADA requirements, are UL and cUL listed for self-closing doors without hold open and are tested and certified under ANSI Standard A156.4, Grade 1.
The 4040XPT Series is the toughest closer out there that is strong, smart and reliable.
The 4040XPT is LCN's most durable heavy duty closer designed for the most demanding, high use and abuse applications. This series sets a new standard for reliability, longevity, and value with a beefier design and extraordinary performance,
