4810 Series Pneumatic Operator, Aluminum Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

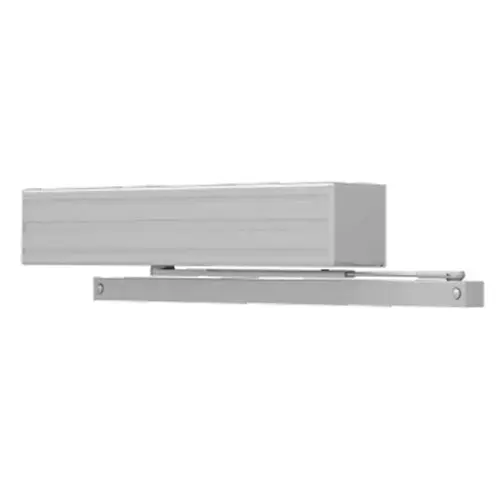

LCN 4811-STD AL 4810 Series Pneumatic Operator, Aluminum Painted

Item #: 4811-STD AL by LCN

See reviewsSee reviews
See reviews summary
In Stock

$2,403.36

/each
SAVE UP TO 240.34

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Ideal for multi-door applications since cost per door leaf decrease significantly as the number of door leaves increases.
  • Standard, plate mounted 4810 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack.
  • Meets ADA requirements (power mode).
  • Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
  • Non-handed.
  • Requires additional system components.
  • Standard or optional custom powder coated finish, end caps are black.
  • Optional plated finish on cover, arm, and fasteners.

Closer Size

Adj. 1 to 4

Cold Weather Fluid

Yes

Mounting Style

Slide Track

BAA Qualified

Yes

Color Code

689/US28

Mounting Location

Pull Side

Package Qty

1

Type

Surface

Cover

Full Metal

Special Marks

Complies with ADA accessibility guidelines

Grade

Grade 1

Hand

Non-Handed

Color

Aluminum Painted

Package Volume

0

Finish

Aluminum Painted

Finish Description

Aluminum Painted

Function

Pull Side Operator

Spring Size

Adjustable 1-4

Mount

Pull Side

Product Type

Door Operator

Series

4810 Series

ADA Approved

False

Healthy Solution

Touchless

ADA Compliant

YES

Finish Family

Aluminum

Standards

ADA; Meets BAA

Closer Arm Type

Standard Single Lever Arm and Track

Function Family

Power Door Operator

For Door Width

28" to 48"

Minimum Top Rail Width

1-1/8 Inch

Fastener Type

Wood and Machine Screws

Features

Cast Iron Body; Full Complement Bearing

Overall Length

20 Inch

Mounting Type

Top Jamb Pull Side

Warranty

2 Year

Manufacturer Parent

Allegion

Minimum Door Width

28 Inch

Frame Reveal

1/8 Inch

healthy_solution

Touchless

Sub-Series

4811-STD-AL

Product Overview
4810 Series Auto EqualizerPneumatically Powered Closer

The 4810 AUTO EQUALIZER™ is LCN’s pneumatically powered MULTIDOOR solution. This low-energy automatic operator provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Specifications: Certifications:
  • Grade 1 - ANSI A117.1, A156.19, UL 10C 228, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 3/4" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Non-Handed
Size:
  • Adjustable Spring Size 1-4
Warranty:
  • 2 years
Cover:
  • Metal, standard
Fasteners:
  • Wood and machine screws
Mounting:
  • Top jamb (Pull Side)
Arms:
  • Single lever arm with standard track
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
