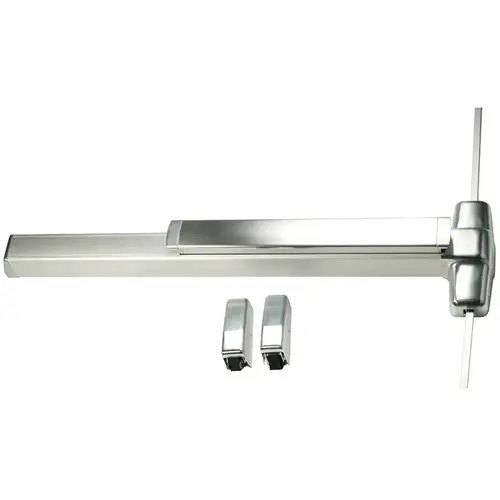

Von Duprin 9827EO-F 3 32D 98 Series Surface Vertical Rod Exit Device
Item #: 9827EO-F 3 32D by Von Duprin
UPC #: 840067624371
In Stock $2,501.60 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm)
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
- Door undercut 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Door Height
7 Inch, 1-1/8 Inch x 2-1/4 Inch, Square Corner.
Package Volume
1930.95
Mechanical Function
Exit Only
Color
Satin Stainless Steel
Physical Appearance
Wide Stile Pushpad
Case Width
16"
Product Width
3.75"
Hand
Non-Handed
Grade
Grade 1
Fire Rated
Yes
Special Marks
Fire rated 1-1/2 Hours {B} {D}
Product Height
8"
Device Type
Surface Vertical Rod Device
Strike Bottom
304L
Case Length
41"
Mechanical Options
Fire Rated Device
Package Qty
1
Door Width
28 In. - 36 In.
Package Height
10.5"
Includes Trim
No
Device Length
36 Inch (3 Foot)
Door Thickness
1-3/4" (44 mm) to 2-1/4" (57 mm)
Case Height
11.75"
Strike Top
229F
Package Width
5"
Case Volume
7708
Color Code
630/US32D
Origin
USA
BAA Qualified
Yes
Product Length
33"
Base Material
Stainless Steel
Minimum Stile Size
Wide
Door Material
Metal or Wood
Package Length
36.78"
Finish
Stainless Steel
Warranty
3-year warranty
Pack Size
1
Builders Hardware Product Type
Exit Devices
Door Handing
Universal/Reversible
General Material
Stainless Steel
Hardware Finish Family
Stainless Steel
Product Depth (in.)
36.78
Product Height (in.)
10.5
Product Width (in.)
5
UNSPSC
31162800
Latch Type
Deadlocking
Finish Family
Stainless Steel
Included Components
Screw Pack
Trim Options
EO Exit Only
Standards
ANSI/BHMA A156.3-2014 Grade 1 certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC-S104; CAN/ULC-S132
Trim Style
EO
Center Case Dimensions
8" x 2-3/4" x 2-3/8"
Device Bar Projection
3-13/16" Pushbar neutral (97 mm); 3-1/16" Pushbar Depressed (78 mm)
Device Rating
Fire Exit Hardware
For Door Height
7 Foot
Device Trim Function
No Trim
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4" (44 mm) to 2-1/4" (57 mm)
Device Centerline From Finished Floor
39-5/8 Inch
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
For Door Width
28" to 36"
Recommended Door Undercut
1/4"
Mechanism Case Dimensions
2-1/4" x 2-1/4"
Features
Device Has a Smooth Mechanism Case
Product Type
Exit Device
Manufacturer Parent
Allegion
Sub-Series
EDT_Surface_Vertical_Rod_Devices_von_duprin_212
Application
Single and Double Doors; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Building
Length
3
Function
Exit Only
Bolt Throw
Top and Bottom Bolt 5/8"
Stile
Wide Stile
Finish Description
Satin Stainless Steel
ANSI Function
01
9827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case. The surface vertical rod device is non-handed except when the following device options are used: SD (special dogging), SS (signal switch) or WS (Tornado/Hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.
Specifications: Finishes:- US3, US3A, US4, US4A, US10, US26, US26D, US26D-AM Antimicrobial, US28, 313, 315 and 643E. US15 and US32D available with 98 Series only.
- Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- 2' - 2' (610 mm) Door size
- 3' - 2'4' to 3' (711mm to 914 mm) Door size
- 4' - 2'10" to 4' (864 mm to 1219 mm) Door size
- 39 5/8"
- (1006 mm)
- 8" x 2 3/4" x2 3/8"
- (203mm x 70mm x 60mm)
- 2 1/4" x 2 1/4"
- (57mm x 57mm)
- Pushbar neutral – 3 13/16" (97 mm)
- Pushbar depressed – 3 1/16" (78 mm)
- Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
- 1/4" (7mm) recommended
- 1/2" x 2 1/8" x 1 1/2"
- (114mm x 54mm x 38mm)
- 1/2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm). Extension rods available in 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
- Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch.
- LX - Latch bolt monitor switch
- RX - Request to exit
- RX2 - Double request to exit
- E - Electric locking and unlocking trim
- EL - Electric latch retraction
- QEL - Quiet electric latch retraction
- SS - Signal switch
- CX - Chexit delayed exit
- ALK - Alarm exit kit
- WP-RX - Waterproof request to exit
- CON - Allegion Connect
- AX - Accessible device
- GBK - Glass bead kit
- LBR - Less bottom rod
- PL - Pullman latch
- PN - Pneumatic latch retraction
- QM - Quiet mechanical
- SNB - Sex bolts
- SEC - Security screws
- WH - Weep holes
- WS - Tornado and hurricane tested
- Hex key dogging standard
- CD - Cylinder dogging
- CDSI - Cylinder dogging with security indicator
- HDSI - Hex dogging with security indicator
- SD - Special center case dogging
- LD - Less dogging
- DI - Dogging indicator
- CI - Cylinder dogging indicator
- 299 - Dull black
- 248L4 and 304L – Unfinished
