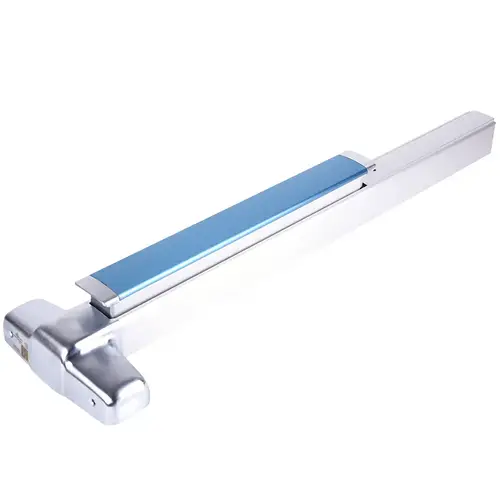

Von Duprin 9847EO-F 4 32D 9847EO-F Concealed Vertical Rod Fire Exit Device - 4' Stainless Steel
Item #: 9847EO-F 4 32D by Von Duprin
UPC #: 840067624470
In Stock $2,649.68 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2' 2' (610 mm) Door size 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8" (1006 mm) Standard Adjustable from 355 /8" (905mm) to 495 /8" (1260mm) Center case dimensions 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5 /8" (16mm) throw
- Door undercut: 1 /4" (7mm) recommended
- Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
- Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35 5/8" (905 mm) to 49 5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors. Optional 425 SNB available.
Door Height
8 Foot-4 Inch (100 Inches)
Package Volume
2585.625
Mechanical Function
Exit Only
Color
Satin Stainless Steel
Physical Appearance
Wide Stile Pushpad
Case Width
16"
Product Width
3.75"
Hand
Non-Handed
Grade
Grade 1
Fire Rated
Yes
Special Marks
Fire rated 1-1/2 Hours {B} {D}
Product Height
8"
Device Type
Concealed Vertical Rod Device
Strike Bottom
385A
Case Length
49.75"
Mechanical Options
Fire Rated Device
Package Qty
1
Door Width
34 In. - 48 In.
Package Height
10.5"
Includes Trim
No
Device Length
48 Inch (4 Foot)
Door Thickness
1 3/4 In. - 2 1/4 In.
Case Height
11.75"
Strike Top
338
Package Width
5"
Case Volume
9353
Color Code
630/US32D
Origin
USA
BAA Qualified
Yes
Product Length
45"
Base Material
Stainless Steel
Minimum Stile Size
Wide
Door Material
Metal
Package Length
49.25"
Pack Size
1
Builders Hardware Product Type
Exit Devices
Door Handing
Universal/Reversible
General Material
Stainless Steel
Hardware Finish Family
Stainless Steel
Product Depth (in.)
49.25
Product Height (in.)
10.5
Product Width (in.)
5
Finish
Stainless Steel
Warranty
3-year warranty
UNSPSC
31162800
Dogging Options
Hex Key Dogging
Latch Type
Deadlocking
Strike Type
Top: 338; Bottom: 385A
Finish Family
Stainless Steel
Included Components
Fasteners and Sex Bolts (SNB) for 1-3/4" to 2-1/4" Thick Metal Doors
Trim Options
EO Exit Only
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC-S104; CAN/ULC-S132
Trim Style
EO
Center Case Dimensions
8 Inch x 2-3/4 Inch x 2-3/8 Inch
Device Bar Projection
Pushbar Neutral: 3-13/16 Inch; Pushbar Depressed: 3-1/16 Inch
Device Rating
Fire Exit Hardware
For Door Height
8 Foot 4 Inch
Device Trim Function
No Outside Trim
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4 Inch to 2-1/4 Inch
Device Centerline From Finished Floor
Standard: 39-5/8 in; Adjustable: 35-5/8 in to 49-5/8 in
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
For Door Width
2 Foot 10 Inch to 4 Foot
Recommended Door Undercut
1/4 Inch
Mechanism Case Dimensions
2-1/4 Inch x 2-1/4 Inch
Features
Smooth Mechanism Case; Push Pad; Narrow Stile; Modular Design
Product Type
Exit Device
Application
Single and Double Doors; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Buildings
Length
4
Function
Exit Only
Bolt Throw
5/8 Inch
Stile
Wide Stile
Finish Description
Satin Stainless Steel
ANSI Function
01
Manufacturer Parent
Allegion
Vertical Rod Adjustment
Top Rod Adjustable: 6 ft 8 Inch to 8 ft 4 Inch; Bottom Rod Adjustable: 35-5/8 Inch to 49-5/8 Inch
Sub-Series
EDT_Concealed_Ver_Rod_Devices_Von_Duprin_45
9847-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.
Specifications: Device functions:- Device ships EO/DT/NL; Field selectable;
- For TP, K or L remove NL drive screw from device
- 2' - 2' (610 mm) Door size
- 3' - 2'4' to 3' (711mm to 914mm) Door size
- 4' - 2'10" to 4' (864mm to 1219mm) Door size
- 39 5/8" (1006 mm) Standard
- Adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm)
- 8" x 2 3/4" x 2 3/8"
- (203mm x 70mm x 60mm)
- 2 1/4" x 2 1/4"
- (57mm x 57mm)
- Pushbar neutral – 3 13/16" (97mm)
- Pushbar depressed – 3 1/16" (78mm)
- Deadlocking top and bottom bolt, 5/8" (16mm) throw
- 3 3/4" x 1 1/2" x 1"
- (95mm x 38mm x 25mm)
- Round 2-piece adjustable rods – Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm). Bottom rod adjustable 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
- 605, 606, 612, 625, 626/626AM, 628, 710, 711 and 643e
- (619 and 630 available with 98 Series only)
- Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal doors (Optional 425 SNB available)
- LX - Latch bolt monitor switch
- RX - Request to exit
- RX2 - Double request to exit
- E - Electric locking and unlocking trim
- EL - Electric latch retraction
- QEL - Quiet electric latch retraction
- SS - Signal switch
- CX - Chexit delayed exit
- ALK - Alarm exit kit
- WP-RX - Waterproof request to exit
- CON - Allegion Connect
- GBK - Glass bead kit
- LBR - Less bottom rod
- PN - Pneumatic latch retraction
- SNB - Sex bolts
- SEC - Security screws
- SLM - Special laminate material blocking
- WH - Weep holes
- No mechanical dogging;
- EL and QEL options available
- 338 – Unfinished
- 385A – Unfinished
