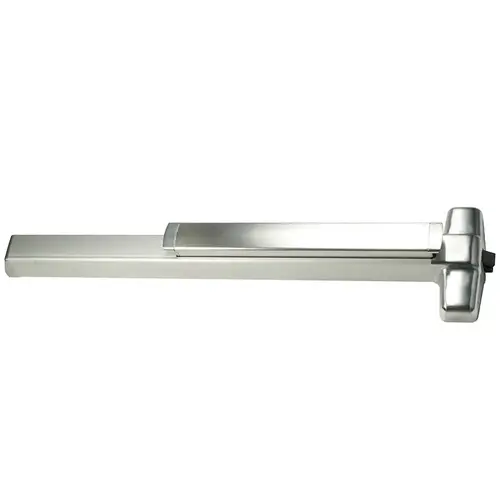

Von Duprin 98EO-F 3 US28 98EO-F Rim Fire Exit Device
Item #: 98EO-F 3 US28 by Von Duprin
UPC #: 840067624623
In Stock $1,500.98 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available
Grade
Grade 1
Hand
Non-Handed
Color
Satin Aluminum Clear Anodized
Color Code
628/US28
Case Length
41"
Door Thickness
1 3/4 In. - 2 1/4 In.
Door Width
28 In. - 36 In.
Device Length
36 Inch (3 Foot)
Fire Rated
Yes
Origin
USA
BAA Qualified
Yes
Package Height
10.5"
Package Length
36.78"
Package Volume
1930.95
Package Width
5"
Case Height
11.75"
Case Volume
7708
Case Width
16"
Device Type
Rim Device
Includes Trim
No
Mechanical Function
Exit Only
Mechanical Options
Fire Rated Device
Minimum Stile Size
Wide
Package Qty
1
Physical Appearance
Wide Stile Pushpad
Product Height
8"
Product Length
33"
Product Width
3.75"
Special Marks
Fire rated 3 Hours {A}
Base Material
Aluminum
Door Material
Metal or Wood
Finish
Aluminum, Anodized
Warranty
3-year warranty
Pack Size
1
Builders Hardware Product Type
Exit Devices
Door Handing
Universal/Reversible
General Material
Brass
Hardware Finish Family
Metal
Product Depth (in.)
36.78
Product Height (in.)
10.5
Product Width (in.)
5
UNSPSC
31162800
Dogging Options
Less Dogging
Latch Type
Deadlocking
Finish Family
Aluminum
Trim Options
EO Exit Only
Standards
ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 10C; ANSI/UL 305; CAN/ULC S104; CAN/ULC S132
Stile Width
4-1/2 Inch
Trim Style
EO
Center Case Dimensions
8 Inch x 2-3/4 Inch x 2-3/8 Inch
Device Bar Projection
Push Bar Neutral: 3-13/16 Inch; Push Bar Depressed: 3-1/16 Inch
Device Rating
Fire Exit Hardware
Device Trim Function
Exit Only (No Outside Trim)
Function Description
Exit Only - No Trim
For Door Thickness
1-3/4 Inch
Device Centerline From Finished Floor
39-13/16 Inch; 39-11/16 Inch with Mullion
Function Family
Exit Only-No Trim
Device Trim ANSI Function
01
Mechanism Case Dimensions
2-1/4 Inch x 2-1/4 Inch
Features
Push Pad; Wide Stile; Heavy Duty
Product Type
Exit Device
Manufacturer Parent
Allegion
Sub-Series
EDT_Rim_Devices_von_duprin_96
Application
Single Doors and Double Doors With Mullion; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Buildings
Length
3
Function
Exit Only
Bolt Throw
3/4 Inch
Stile
Wide Stile
Finish Description
Satin Aluminum
ANSI Function
01
98-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, Grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).
Specifications: Device functions:- Device ships EO/DT/N; Field selectable;
- For TP, K or L remove NL drive screw from device
- 3' - 2'4' to 3' (711mm to 914mm) Door size
- 4' - 2'10" to 4' (864mm to 1219mm) Door size
- 39 13/16" (1011mm)
- 39 11/16" (1008mm) with mullion
- 8" x 2 3/4" x 2 3/8"
- (203mm x 70mm x 60mm)
- 2 1/4" x 2 1/4"
- (57mm x 57mm)
- Pushbar neutral – 3 13/16" (97mm)
- Pushbar depressed – 3 1/16" (78mm)
- Deadlocking, 3/4" (19mm) throw
- 605, 606, 612, 626/626AM, 628, 710, 711 and 643e
- (619 and 630 available with 98 Series only)
- Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
- LX - Latch bolt monitor switch
- RX - Request to exit
- RX2 - Double request to exit
- E - Electric locking and unlocking trim
- EL - Electric latch retraction
- QEL - Quiet electric latch retraction
- SS - Signal switch
- CX - Chexit delayed exit
- ALK - Alarm exit kit
- WP-RX - Waterproof request to exit
- CON - Allegion Connect
- -2 - Double cylinder
- -2 - Double cylinder with security indicator
- AX - Accessible device
- GBK - Glass bead kit
- PN - Pneumatic latch retraction
- QM - Quiet mechanical
- SNB - Sex bolts
- SEC - Security screws
- SLM - Special laminate material blocking
- WH - Weep holes
- XP - Extra protection
- No mechanical dogging;
- EL and QEL options available
- 299F – Dull black, 499F with mullions
