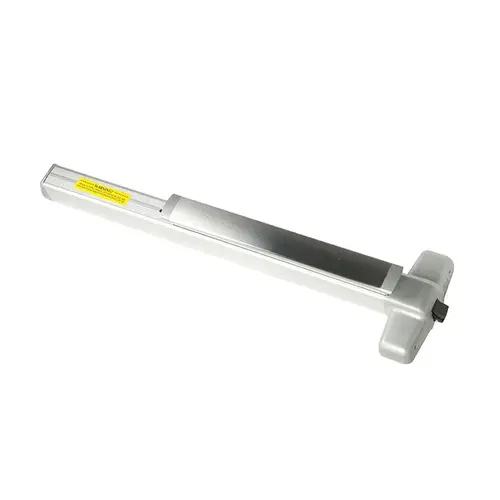

Von Duprin 99EO 4 US28 99EO Rim Exit Device - 4' Satin Anodized

Item #: 99EO 4 US28 by Von Duprin

See reviewsSee reviews
In Stock

$1,372.09

/each
SAVE UP TO 137.21

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Grade

Grade 1

Hand

Non-Handed

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Case Length

49.75"

Door Thickness

1-3/4" - 2-1/4"

Door Width

2 Ft. 10 In. - 4 Ft.

Door Material

Metal or Wood

Base Material

Aluminum

Product Width

3.75"

Product Length

45"

Product Height

8"

Physical Appearance

Wide Stile Pushpad

Package Qty

1

Minimum Stile Size

4-1/2"

Includes Trim

No

Dogging Options

Hex Key Dogging

Device Type

Rim Device

Case Width

16"

Case Volume

9353

Case Height

11.75"

Package Width

5"

Package Volume

2585.625

Package Length

49.25"

Package Height

10.5"

BAA Qualified

Yes

Origin

USA

Fire Rated

No

Device Length

48 Inch (4 Foot)

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Latch Type

Deadlocking

Finish Family

Aluminum

Trim Options

EO Exit Only

Standards

ANSI/BHMA A156.3 2014 Grade 1 Certified; ANSI/UL 305; CAN/ULC S132

Stile Width

4-1/2 Inch

Trim Style

EO

Center Case Dimensions

8 Inch x 2-3/4 Inch x 2-3/8 Inch

Device Bar Projection

Push Bar Neutral: 3-13/16 Inch; Push Bar Depressed: 3-1/16 Inch

Device Rating

Panic Exit Hardware

Device Trim Function

Exit Only (No Outside Trim)

Function Description

Exit Only - No Trim

For Door Thickness

1-3/4 Inch

Device Centerline From Finished Floor

39-13/16 Inch; 39-11/16 Inch with Mullion

Function Family

Exit Only-No Trim

Device Trim ANSI Function

01

Mechanism Case Dimensions

2-1/4 Inch x 2-1/4 Inch

Features

Push Pad; Wide Stile; Heavy Duty

Product Type

Exit Device

Series

99 Pushbar

Manufacturer Parent

Allegion

Sub-Series

EDT_Rim_Devices_von_duprin_101

Application

Single Doors and Double Doors With Mullion; Higher Education; K-12 Schools; Hospitals; Hospitality and Government Buildings

Length

4

Function

Exit Only

Finish Description

Satin Aluminum

ANSI Function

01

Bolt Throw

3/4 Inch

Stile

Wide Stile

Product Overview
99 SeriesRim exit device

99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. The 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Specifications: Device functions:
  • Device ships EO/DT/NL; Field selectable;
  • For TP, K or L remove NL drive screw from device
Device lengths:
  • 3' - 2'4' to 3' (711mm to 914mm) Door size
  • 4' - 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
  • 39 13/16" (1011mm)
  • 39 11/16" (1008mm) with mullion
Center case:
  • 8" x 2 3/4" x2 3/8"
  • (203mm x 70mm x 60mm)
Mechanism case:
  • 2 1/4" x 2 1/4"
  • (57mm x 57mm)
Projection:
  • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)
Latch bolt:
  • Deadlocking, 3/4" (19mm) throw
Finishes:
  • 605, 606, 612, 625, 626/626AM, 628, 710, 711 and 643e
  • (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB):
  • Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors
Electrified options:
  • LX - Latch bolt monitor switch
  • RX - Request to exit
  • RX2 - Double request to exit
  • E - Electric locking and unlocking trim
  • QEL - Quiet electric latch retraction
  • SS - Signal switch
  • CX - Chexit delayed exit
  • ALK - Alarm exit kit
  • WP-RX - Waterproof request to exit
  • CON - Allegion Connect
Mechanical options:
  • -2 - Double cylinder
  • -2SI - Double cylinder with security indicator
  • AX - Accessible device
  • GBK - Glass bead kit
  • PN - Pneumatic latch retraction
  • QM - Quiet mechanical
  • SNB - Sex bolts
  • SEC - Security screws
  • WH - Weep holes
  • XP - Extra protection
Dogging feature:
  • Hex key dogging standard
Dogging options:
  • CD - Cylinder dogging
  • CD-CX - Chexit cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • SD - Special center case dogging
  • LD - Less dogging
  • DI - Dogging indicator
  • CI - Cylinder dogging indicator
Strikes:
  • 299 – Dull black
