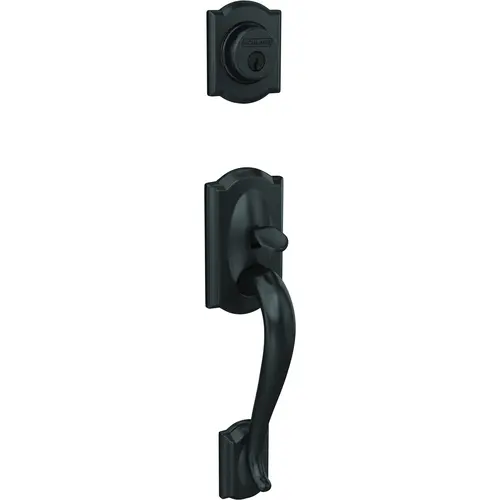

Schlage Residential F58 CAM 622 F58CAM622 Camelot Handleset for F59 Trims - Matte Black
Item #: F58 CAM 622 by Schlage Residential
Brand: Schlage Residential
UPC #: 043156164363
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Exterior Active Handleset - Outside Grip & Deadbolt Trim of F60; Order with F59 for Complete Handleset
- One-Tool Installation - Installs with Just a Phillips Screwdriver
- Reversible Handing
- Applications: Residential single and multi-family entrance doors.
- Patented Throughbolt Slides Up and Down So You Don't Have to Patch/Redrill Your Door
- Lifetime Mechanical & Finish Warranty
- Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.
- Certified Commercial Grade 1
- Graded Best in Residential Security, Durability, and Finish
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
Function
Single Cylinder
Series
F Series
Design
Camelot
Finish
Matte Black
Color
Flat Black Coated
Color Code
622/US19/MTBK
Mount
Sectional
Handle Style
CAM-Camelot
Cylinder Type
Conventional Cylinder
Finish Description
Black
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Arch Escutcheon
Product Type
Handleset
Grade
ANSI/BHMA Grade 1
Keyway
SC1 5-Pin Pin & Tumbler
Handing
Reversible
Projection
2.9375
Door Thickness
1-5/8" to 1-7/8"
Bore Size
2.1250
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Included Components
Outside Grip Handle; Deadbolt Trim of F60; (2) Cut Keys
Box Length
16.2500
Box Width
7.9700
Box Height
3.9000
Keyway type
C
Latch Housing Diameter
1"
Key Type
Keyed different
Center to Center
4"
Plainbolt Latch Throw
1/2"
Application
Residential
Edge Bore Diameter
7/8"
Dimensions
7/8"
Nomenclature
F58CAM622 HNDLSET EXT SNGL BLK
Deadbolt Latch Throw
1"
Backset Type
Universal
Material
Brass
Strike Type
Full Lip Square Corner
Backset Size
2-3/8 x 2-3/4"
Warranty
Lifetime Limited Mechanical/Finish
ADA Compliant
No
Finish Family
Black
Standards
ANSI/BHMA A156.36-2016; ANSI/BHMA A156.40-2015
Function Family
Handleset Exterior
Features
Door Frame Reinforcer With 3" Screws; Adjustable Throughbolt can Move Up and Down 1-1/2" to Fit a Variety of Pre-Existing Holes; Pair With An F59 for a Complete Handleset
Manufacturer Parent
Allegion
Inside Trim Function
F59 Inside Trim
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.9x7.97x16.25"
Sub-Series
RL_Handlesets_schlage_residential_3
Collection
Camelot
Package Height
3.9"
Package Length
16.25"
Package Width
7.97"
Item Weight
4.82 lbs
Dimension
18-1/16" Height x 3" Width x 2-15/16" Projection
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Range
1-5/8" to 1-3/4"
Hazardous Material
No
Cross Bore Size
2-1/8" Bore
Finish code
622
No of inners
1
No Of Pins
5 Pin Cylinder
Keyed
Yes
Handle Design
CAM - Camelot
Electronic
No
Door Handing
Non-Handed
Standard Strike
10-115: Round Corner Full Lip Strike Set (10-027 + 10-116)
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Cylinder and Keyways
Conventional Cylinder
Trim Hardware
Camelot
Standard Latch
12-322: Dual Option - Round Corner + Drive-in (16-080 + 12-321)
Product Overview
The Schlage Camelot Exterior Handleset Grip with Exterior Single Cylinder Deadbolt in Matte Black is perfect for use on the exterior of your front door. The Camelot handleset's scalloped architectural details make any room charming and approachable. The striking appearance of the Matte Black finish creates an elegant look that's sure to be noticed in any style setting. Plus, it's been designed and tested with strength and durability in mind.
