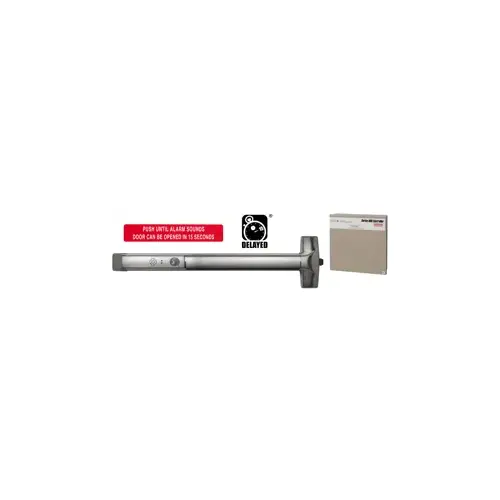

DETEX 10CD-IC7-EE-628-48 Advantex Rim Device 15 Second Delay

Item #: 10CD-IC7-EE-628-48 by DETEX

See reviews See reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Alternate Part Number-1

177896

DETEX Advantex 10 Series Rim Exit Device

10 Series Rim Exit Device: is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

FEATURES:

  • ANSI 156.3 - 2008 Grade 1, Type 1.
  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments.
  • Patented mounting plate and strike locator system replaces paper templates.
  • Fast and easy installation saves time and money.
  • Minimal door prep saves time and money.
  • Outside trims are easily changed or re-keyed without removing device from door.
  • Heavy duty angled end cap deflects damage away from device.
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process.
  • Tested beyond 1,000,000 cycles - Twice the cycling required for Grade 1 UL testing.
  • Non-handed.
  • Stainless steel deadlocking, Pullman-type latch bolt.
  • Field sizeable.
  • 1/8 turn hex or cylinder dogging.

    • SPECIFICATIONS:

  • Door Types: Wood, Hollow Metal, Fiberglass or Aluminum.
  • Door Thickness: Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory).
  • Minimum Stile: 4-5/8" with standard 99 strike; 4-1/8" with optional 98 strike.
  • Fasteners: Machine and Self-Drilling Screws standard.
  • Detex Limited Warranty: 10 Year Mechanical. 3 year Electrical Limited Manufacturer’s Warranty.

    • MECHANICAL OPTIONS:

  • F: 3-Hour Fire Rated.
  • H: Hurricane Rated.
  • AM: Anti-Microbial Coating.
  • CD: Cylinder Dogging.
  • HD: Hex Dogging (Std.).
  • LD: Less Dogging.
  • SLR: Silencer.
  • 99: Surface Strike (Std.).
  • 98: Semi Mortise Strike.
  • EC1: Heavy duty angled end cap (Std.).
  • EC2: Flush end cap.
  • 24: Fits 24" Door Width.
  • 30: Fits 30" Door Width.
  • 36: Fits 36" Door Width (Std.).
  • 48: Fits 48" Door Width.

    • ELECTRICAL OPTIONS:

  • EA: Exit Alarm.
  • ED: Electric Dogging.
  • ER EX: Electric Latch Retraction with Request to Exit Switch.
  • EE: Delayed Egress - Self Contained.
  • EE ER: Delayed Egress with Latch Retraction.
  • EI: Electric Integration.
  • EU: Electric Unlock.
  • LX: Latch Bolt Signaling.
  • LXV: Latch Bolt Signaling for High Voltage.
  • ES: Electric Switching.
  • EX: Request to Exit.
  • EXV: Request to Exit for High Voltage.

    • ACCESSORIES:

  • GB1: Glass Bead Kit.
  • SN1: Sex Nut Kit (2 per package).
  • SSK: Security Torx Screw Kit.

    • LISTINGS AND APPROVALS:

  • UL Listed Panic Hardware.
  • UL Listed Fire Exit Hardware for 3 hours, maximum 4' x 10' single doors and pairs of 8' x 8' with F90KR keyed removable mullion.
  • Meets ADA requirements.
  • ANSI/BHMA certified A156.3.
  • UBC 97, Standard 7-2 and UL10B/UL10C for positive pressure.
  • Meets NFPA 80 & 101 for Life Safety.
  • State of Florida Approval.
  • Texas Department of Insurance.
  • California State Fire Marshall.

    • FINISHES:

  • » 605/US3 - Polished Brass
  • » 606/US4 - Brushed Brass
  • » 611/US9 - Polished Bronze
  • » 612/US10 - Brushed Bronze
  • » 613/US10B - Oil Rubbed Bronze
  • » 628/US28 - Aluminum Satin
  • » 629/US32 - Polished Stainless Steel
  • » 630/US32D - Brushed Stainless Steel
  • » 693/SPBLK - Black, Painted
  • » 695/SP313 - Dark Bronze, Painted
