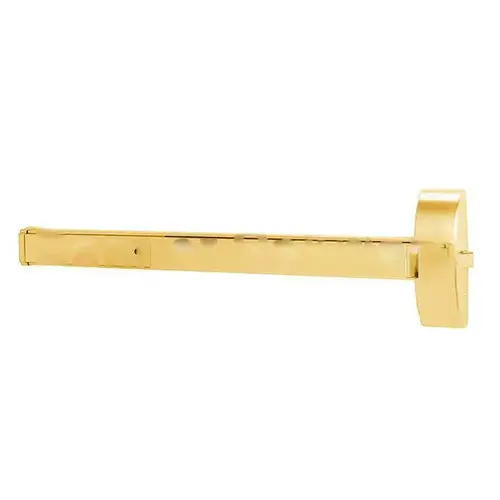

DORMA 9300A-605 9300 Series Rim Exit Device, Bright Polished Brass

9000 SeriesPremium Exit Devices

Premium exit devices available in wide or narrow stile for high impact applications such as schools, universities, and other institutional or commercial buildings.

9000 Series exit devices reliably secure egress doors in compliance with all applicable fire/life safety code requirements. Wide and narrow stile exit devices for high-impact applications are available in rim, mortise, and surface or concealed rod configurations in both fire and panic-rated versions.

9000 Series exit devices offer the specifier a selection of true architectural finishes and a full complement of electrified options, including alarmed exit, delayed egress exit, electric latch retraction, and device monitoring.

Wide Stile
The 9000 Series wide stile exit device features a heavy-duty cast chassis for superior durability, while the smooth reduced projection touchbar assembly minimizes catch hazards. The partial length touchpad permits field installation of options such as cylinder dogging and exit alarm. A full complement of free wheeling lever trim is available in a wide range of architectural finishes.

The heavy-duty cast chassis design permits installation on narrow stile doors where a standard device may not fit. The smooth projection touchbar assembly minimizes catch hazards. The partial length touchpad permits field installation of options such as cylinder dogging and exit alarm.

9000 Series narrow stile exit devices are available in a wide range of models and offer a full complement of free wheeling lever trim to meet most narrow stile door applications.

Features:

• Wide stile touchbar and rail, chassis, latch bolt covers, and end cap are fabricated and finished in true base metal. Narrow stile is the same except chassis cover is always brass and finished to match device.

• End cap for touchbar assembly furnished in complementary finish.

• Some models handed depending on outside operating trim and function.

• Most devices easily field-reversible.

• Fasteners provided for metal and wood door applications.

• Free wheeling, vandal-resistant trim standard.

Certification:

• Certified/listed to ANSI/BHMA 156.3, Grade 1 for exit devices.

• U.L. and C.U.L. listed under their continuing reinspection programs and conforms to standard U.L. 10C positive pressure testing.

• Complies with NFPA 101 life safety code. Fire rated devices comply with NFPA 80 fire doors and windows.

• Devices, trim, pulls, and levers comply with the Americans for Disabilities Act, 1994, and ICC A117.1 for accessible and usable buildings and facilities.

• Contributes to U.S. Green Building Council, LEED MR Credits 2.1, 4.1, 4.2 and 5.1.

• Listed with the California Department of Forestry and Fire Protection, Office of the State Fire Marshal
  (wide stile devices only).

• Hurricane-code approved to Miami-Dade County Florida and Florida State Building Code acceptance (9300, 9400, 9500, 9700).

• Meets the requirements of the California Building Code (2013) Sec. 11B-309.4 (9300BF, 9500BF, 9700BF).

Specifications:

• All devices to have heavyduty cast chassis.

• All device touchbar, rail, and cover assemblies shall be constructed of heavy gauge solid wrought materials for true architectural finishes or color coated finishes.

• The partial-length touchpad assembly accommodates field installation of options such as cylinder dogging and exit alarm.

• Non-labeled units to have hex-key dogging standard. Fire rated versions available for labeled applications.

• Surface vertical rod devices shall have pullman type top latch bolts and round slidebolt bottom latches.

• All devices to have deadlocking latch bolts with 3/4" throw.

• All units shall offer a full range of free wheeling operational trim, except mortise devices.

• All units shall offer optional rigid and clutch-style trim, where applicable.

• All devices to be furnished with appropriate mounting harDAre including both wood and machine screws, as well as sex nuts where required.

Optional Specifications:

• Non-labeled devices to have cylinder dogging.
• Mortise cylinder included.
• Specify CD.

• All surface/concealed vertical rod devices to have pullman type bottom latch bolt.
• Specify P.

• All surface/concealed vertical rod devices to have extended top rod up to 10'.
• Specify ETR for 8’, 9’, or 10’.

• All surface/concealed vertical rod devices to be furnished less bottom rod.
• Specify LB.

• Devices to have motorized latch bolt retraction to provide remote access from the secure side of door.
• Can also be used to electrically dog/hold the exit push bar in a retracted position during non-secure hours
  (latch bolt is retracted).
• Specify MLR. (MLR is powered by the PS610 or PS532 power supply)

• Devices to have electric latch bolt retraction to provide remote access from the secure side of door.
• Can also be used in conjunction with low energy/automatic door operator.
• Specify ES. (ES must be powered by PS- 501 power supply and use ES-105 power transfer)

• Devices to have electric latch retraction option for battery back-up power supply (requires PS406BB or PS-BB power supply and ES105 power transfer).
• Specify E-.

• Devices to have a controlled delayed egress while simultaneously sounding a local and remote audible alarm.
• After the delay time has elapsed, unrestricted emergency egress is available.
• Specify DE. (Not available with 9400 or 9800, requires ES100 power supply, ES105 power transfer, and FL)

• Devices to have a latch monitor to report the latch bolt status.
• Specify LM.

• Devices to be furnished with two switches in the touchbar to provide notification when touchbar is depressed.
• Specify MS.

• Devices to have latch monitor with monitor switches in touchbar.
• Specify LM/MS.

• Devices to have latch monitor with monitor switches and a bypass to permit authorized exit.
• Specify LM/MS BP.

• Devices to have one of the following exit alarm options:
• battery-powered exit alarm (BA), batterypowered exit alarm with a 4-minute reset (BAR), or direct hard-wired exit alarm (DA).

• Devices to use a vision lite shim kit to raise the device from the door surface to accommodate glass light molding.
• Specify GK9000 (wide stile) or GK9200 (narrow stile).

• All devices for labeled wood or composite doors to be furnished with sex bolts.
• Specify SNB.

• All concealed vertical rod devices installed in aluminum doors to be furnished with appropriate brackets for aluminum door applications.

• All devices to use tamperresistant security screws
• Specify T.

• All devices to be furnished with rigid trim.
• Specify R

• All devices to be furnished with clutch-style lever trim.
• Specify C after lever trim.

Architectural Finishes: Brass:

• 605 (Bright) or 606 (Satin)

Bronze:

• 611 (Bright), 612 (Satin), or 613 (Oxidized Satin)

Nickel:

• 619 (Satin)

Black:

• 693

Chrome:

• 625 (Bright) or 626 (Satin)

Stainless:

• 629 (Bright) or 630 (Satin)

Powder Coated Finishes: Aluminum:

• 689

Bronze:

• 691 (Dull) or 695 (Dark Duranodic)

Black:

• 693

Gold:

• 696

Clear Powder Coat:

• Clear Powder Coat available over 630 – Stainless Steel
• Specify PC

Anti-Microbial:

• Specify AM

Warranty:

• For details, refer to Limited Warranty on our website at go.dormakaba.com/ Terms-DA

Note:

• * No dogging available.

• ** The 9000 Series narrow stile bar lengths are designed for use on narrow stile aluminum entrance doors with a 1/2” blade stop frame. Other applications may require field cutting the bar.
