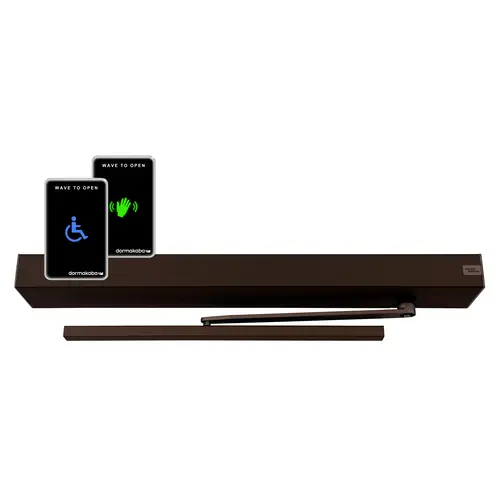

Dormakaba DS467002B One Box Touchless Kit with 2 - 910TC Wave Plate Actuators and ED50 Pull Side Auto Operator Dark Bronze Finish

ED50 SeriesLow Energy Operator

The ED50 low energy swing door operator is the perfect solution for barrier-free access applications, offering a true manual door closer experience. Simple and easy to install, the ED50 provides many features and functions to make existing doors easily accessible.

This medium-duty swing door operator can automate new or existing swing doors with a push plate, wave plate, or other "knowing act" device. The ED50 combines advanced automatic power assist, minimal push forces (as low as ANSI size 1) and reliable closing. Outswing or inswing doors can be adapted for barrier-free access with push, pull, or deep reveal arms suited to a wide variety of door hanging options.

Operator Types and Configurations: 4" x 6" Narrow Header:

• Surface applied
• Overhead concealed

2-3/4" x 5-1/8" Fine Cover:

• Surface applied

Configuration: Header dimensions (H × D × L):

• 4" x 6" x length as required (Narrow)
• 2-3/4" x 5-1/8" x length as required (Fine)

Operator weight:

• 26.5 lb

Internal power supply available for accessories:

• 24 volts DC ± 5% 1.5 A

Maximum door opening angle:

• 110° (door stop recommended)

Maximum wire size:

• 16 AWG

Maximum door weight:

• 220 lb at 48" door width

Door width:

• Minimum 28"
• Maximum 48"

Axle extensions:

• 13/16" (20 mm)
• 1-3/16" (30 mm)
• 2-3/8" (60 mm)

Reveal depth for pull arm:

• 1-3/16" (30 mm)

Reveal depth for CPD pull arm with CPD lever:

• 2-1/4"

Reveal depth for standard push arm:

• 0 to 9-3/4"

Reveal depth for deep push arm:

• 8" to 19-3/4"

Required operating conditions: Ambient temperature:

• 5°F to 122°F

Dry locations:

• Relative air humidity
• Maximum 93%, non-condensing

Power supply:

• 115 volts AC ± 10%, 50/60 HzMaximum 6.6 A

Branch circuit protection (provided by others):

• Maximum 15 Amps,dedicated branch circuit

Protection class:

• NEMA 1

Power wiring:black, white, bare copper (ground):

• Maximum 12 AWG

Operating noise:

• Maximum 50 db(A)

Inputs: Activation inputs:

• X4*
• Interior, exterior
• Normally open contact

Safety sensors:

• X5
• Swing, approach sides, normally closed contact

Night/bank (intercom system):

• X10 - 57, 57a
• 8 to 24 volts DC/volts AC + 5%

Night/bank (key switch):

• X1 - 35, 3
• d2 - parameter
• Configure for Normally Open or Normally Closed

Deactivation of drive function:

• X6 - 4, 4a
• d1 - parameter
• Configure for Normally Open or Normally Closed

Door closer modes: Automatic mode:

• Door opens automatically following pulse generation by a knowing act device or by push/pull.

Manual mode:

• Designed for doors primarily accessed manually.

Power assist:

• Available only in door closer mode, manual opening drive support is automatically adjusted to operator size.

Hold open time: Automatic opening:

• dd - parameter
• 0 to 30 seconds

Night/bank:

• dn - parameter
• 0 to 30 seconds

Manual opening:

• do - parameter
• 0 to 30 seconds

Door blocking behavior:

• hd - parameter
• Automatic, manual door modes

Electric strike delayed opening for locking mechanism:

• Ud - parameter
• 0 to 4 seconds

Integrated functions: Opening force N (lbf):

• Fo - parameter
• Minimum 20 lbf (4.5)
• Maximum 60 lbf (13.5.5)

Manual closing force N (lbf):

• Fc - parameter
• Minimum 20 lbf (4.5)
• Maximum 60 lbf (13.5.5)

Maximum opening speed:

• 27° per second
• May be limited by door weight after learning cycle.

Maximum closing speed:

• 27°per second
• May be limited by door weight after learning cycle.

Door status:

• X7 - 97, 98, 99
• Sr - parameter
• Door closed - Common
• Door open - Normally Open
• Door closed, locked - Normally Closed

Locking device feedback:

• X3 - 43,3
• Motor lock

Wind load control, maximum:

• Fo, Fc - parameters
• 2.5 lb f100 N

Voltage independent braking circuit:

• Adjustable with potentiometer

LED status indicatorsService manual:

• Green - 24 Vdc power
• Red - Error codes
• Yellow - Service interval

Program and Exit Only switches:

• Auto, Close, Open, Exit Only; Off, On

User interface:

• 4-button keypad, 2-digit display

Temperature management programService manual:

• Overload protection

IDC, initial drive control:

• Driving phase optimization

Cycle counter:

• CC - parameter
• 0 to 1,000,000

Power assist function:

• hA, hF, hS - parameters
• Drive support for manual opening door

Push & go function:

• PG - parameter
• Auto opening of door at 4° open
