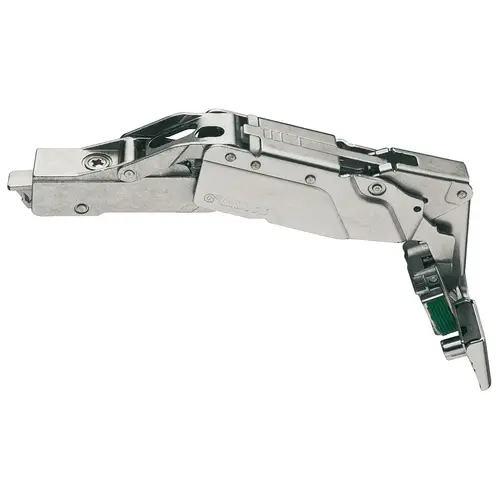

Hafele 348.32.531 Concealed Hinge, Grass Tiomos 160 degree , full overlay mounting without tools 42/11 With automatic closing spring, Without soft closing mechanism Nickel plated

Item #: 348.32.531 by Hafele

See reviewsSee reviews
See reviews summary
In Stock

$13.60

/each
SAVE UP TO 1.36

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • with or without integrated, 3-way adjustable soft closing mechanism in hinge arm (optional)
  • Zero offset for use with internal pull outs or extending trays
  • Shallow cup depth of 10 mm
  • surrounding mitred joint connection possible
  • Dimensions in drawings and tables are calculated using factory settings and for mounting plate height (3/32”) 2 mm.
  • For inset mounting use 19 mm mounting plate. Set mounting plate back by door thickness + 1.5 mm.

Material

Zinc Alloy

Model

F034139407217

Installation

Door on cabinet without tools with clip system

Opening Angle

155°

Functionality

With automatic closing spring, Without soft closing mechanism

Drilling Depth

Shallow cup: 3/8"

For Door Thickness

16 – 32 mm

For door material

wood

Model series

Tiomos 160°

Cup fixing

without tools

Door mounting

full overlay

Adjustment facility

Side adjustment ±2 mm, Height adjustment ±2.5 mm, Depth adjustment -2 – 3 mm, Height adjustment depending on mounting plate

Cup drilling depth

10 mm

Crank type

High Cranked

Drilling pattern

42/11

Door processing for assembly

cup drilling

For door thickness min.

Max. up to 1 1/4"

Color/Finish

Nickel plated

Cup drilling diameter

35 mm

Area of application

for cabinets with internal pull outs or extending trays

Installation reference

Minimum gap F No minimum gap is required up to door thickness 28 mm. Trial mounting recommended from a door thickness of 29 mm and above.

Concealed hinge version

full overlay

Version

With automatic closing spring, Without soft closing mechanism
