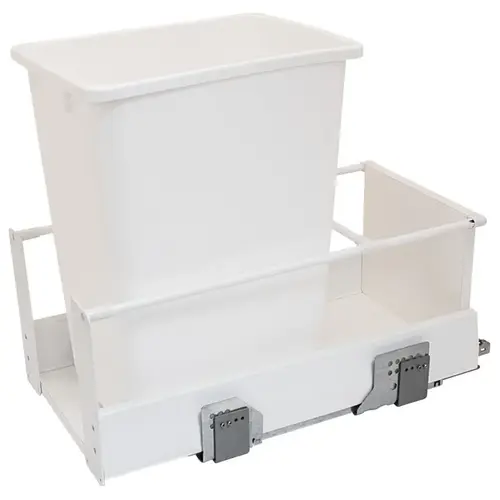

Hafele 503.15.721 Waste Bin Pull-Out, Hafele Matrix, Single 34 l 36 qt Min. 19 1/4" Frame: white, bottom and back: white melamine, bin: white, 36 qt Frame: Steel Bottom & back: Particle board Bin: Plastic
Item #: 503.15.721 by Hafele
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Add your door thickness for inset applications
Capacity
36 qt
Installation
Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
Suitable For
Soft & silent Minimum Opening Width: • 305 mm (12") Face Frame • 324 mm (12 3/4") Frameless • 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
Internal cabinet width
12 - 13 1/2"
Supplied with
Mounting screws Mounting instructions
Type of pull out
Full extension progressive action runners
Version
Soft & Silent Minimum Opening Width: • 305 mm (12") Face Frame • 324 mm (12 3/4") Frameless • 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
Internal cabinet height
Min. 19 1/4"
Area of application
Bottom mount unit designed for Face Frame or Frameless cabinets
For internal cabinet depth min.
21 13/16"
Material/finish
Frame: Steel Bottom & back: Particle board Bin: Plastic
Load bearing capacity
110 lbs
Bin
34 l
Mounting
Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
Number of Bins
1
Product Overview
Waste Bin Pull-Out, Häfele Matrix, Single 34 l 36 qt Min. 19 1/4" Frame: white, bottom and back: white melamine, bin: white, 36 qt
