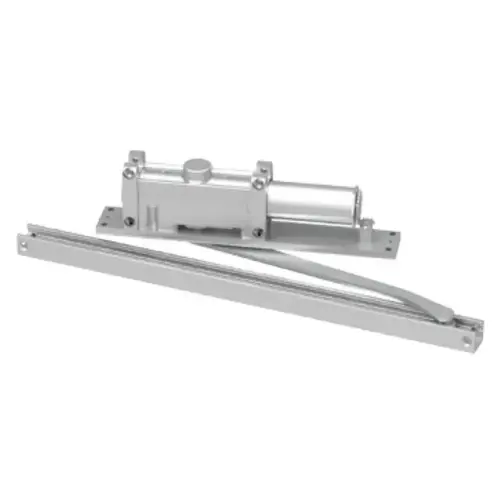

LCN 2011-STD-AL-RH 2010 Series Concealed In-Frame Door Closer
Item #: 2011-STD-AL-RH by LCN Closers
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 1
Hand
Right Hand
Handing
Right Hand
Warranty
15 Year
Spring Size
1
Function
STD-Standard Arm
Mount
Concealed (In Tube)
Maximum Door Weight
225 lbs.
Finish Description
Aluminum Painted
Product Height
3-5/8 Inch
Product Length
22-1/2 Inch
Product Width
2-1/16 Inch
ADA Compliant
YES
Finish Family
Aluminum
Included Components
Standard Cylinder with Mounting Plate; Standard Arm; Standard Track; Wood and Machine Screws
Minimum Door Thickness
1-3/4 Inch
Standards
Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Closer Arm Type
Standard Arm and Track
Hold-Open Type
110° Hold Open
Closer Fluid
All Weather Fluid
Closer Piston Diameter
1-1/8 Inch
Closer Pinion Diameter
11/16 Inch
Function Family
Non Hold Open Door Closer
For Door Width
Exterior Door Width - Size 1 (28"); Interior (28")
Closer Action
Single Acting
Fastener Type
Wood and Machine Screws
Features
Full Complement Bearing; The Single Lever Arm and Roller Assembly Provide Smooth Quiet Door Control; Cast Iron Body
Product Type
Door Closer/Holder/Stop
Series
2010 Series
Manufacturer Parent
Allegion
Closer Hold-Open
false
Sub-Series
LCN-2011-STD-RH
Product Overview
Cast Iron Body, Size 1, Standard Arm/Track, Right Hand, Aluminum (689)
