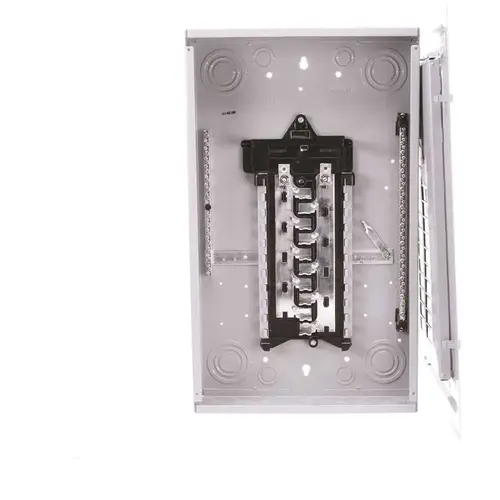

Siemens LC2040L1125 125 Amp 20-Space 40-Circuit Main Lug Load Center
Item #: LC2040L1125 by Siemens AG
UPC #: 040892009620
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Load center width (in.)
15.8
Maximum Amperage
125
Maximum Voltage
120/240 Volt
Number of Circuits
40
Number of Phases
1
Number of Spaces
20
Certifications and Listings
UL Listed
Manufacturer Warranty
1 Year
Phase
1
Amperage
125 Amp
Warranty
1 Year
Mounting Type
Plug In
Voltage
120/240
Pack Size
1
UNSPSC
39121101
Murray products have a rich tradition of quality and reliability that still lives on today. At the heart of the Murray offering is the Rock-Solid load center designed for those customers that prefer an out-board neutral design and metal base pan for installing breakers. The Rock-Solid load center and Murray products remain an important part of the Siemens portfolio. Murray Rock Solid Load Centers are the highest quality, most versatile design in the industry.
- Single phase, 125 Amp main lug load center with 20 spaces/40 circuits
- Swiss cheese style neutral bars provide multiple 1/0 connection points
- Aluminum bus bar
- All units include factory installed ground bar and isolated neutral
- With the use of the included bonding strap, ground bars and neutral bars can be bonded for service entrance applications
- Outboard neutral and ground bars allow for all neutral and ground connections to be located away from breaker connections, making for a neat, clean installation
- Mounting tabs on the trim hold it in place on the load center, freeing up both hands to drive the trim screws
- Combination head screw on trim and upper pan screws provide installation flexibility
- All devices are convertible from main lug to main breaker or vice versa with the addition of main breaker or main lug kits
- All main breakers are straight in wired no back feeding required
- A rigid sturdy base pan with metal hook rails provides the most rugged breaker connection in the industry
- All indoor rock-solid load centers are invertible for bottom feed applications
- NEMA type 1: enclosure is intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist
