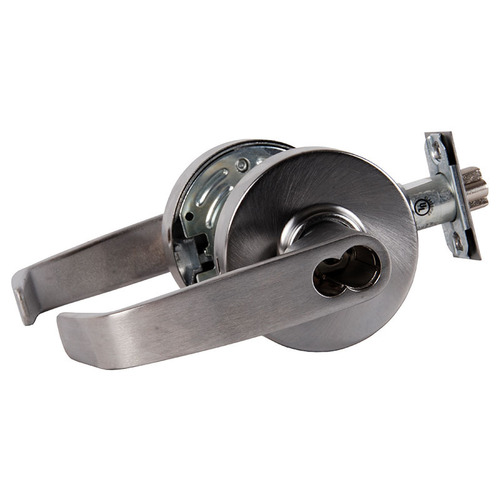

Sargent 2860-7G05 LL 26D 7 Line G05 Entrance/Office Lever Lockset w/LFIC Disposable Core, Satin Chrome

Item #: 2860-7G05 LL 26D by Sargent

See reviews

In Stock $253.63 /each

SAVE UP TO 25.36

Buying in bulk

Roll over image to zoom in

Sargent 2860-7G05 LL 26D 7 Line G05 Entrance/Office Lever Lockset w/LFIC Disposable Core, Satin Chrome

Item #: 2860-7G05 LL 26D by Sargent

See reviews See reviews

In Stock $253.63 /each

SAVE UP TO 25.36

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
  • Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
  • Cylindrical Housing: Steel, zinc dichromate finish
  • Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
  • Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
  • Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
  • Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
  • Door Prep: ANSI A115.2; Specify 20- for 160 Prep

Finish

Satin Chrome

Function

G05-Entry/Office

Design

L Lever and L Rose

Strike

ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Case Length

20.75"

Color Code

626/US26D

Hand

Not Handed

Case Qty

10

Application

Medium Duty Cylindrical

Thickness

1-3/8" - 1-3/4"

Grade

ANSI/BHMA Grade 2

Strike Width

1-1/4"

Strike Type

ASA

Strike Number

808

Strike Height

4-7/8"

Special Marks

Full size/large format interchangeable core

Screws

Combination

Rose/Escutcheon Design

L - Rose

Package Qty

1

Lock Face Size

2-1/4" x 1-1/8"

Lever/Knob Design

L - Lever

Latch Type

Dead Latch (Guarded)

Latch Number

07-2430

Latch Backset Dim

2-3/4"

Dust Box

None

Case Width

15"

Case Volume

2801.25

Case Height

9"

Bolt Protection

1/2"

ANSI Function

F81 - Office

Package Width

6.875"

Package Volume

241.0546875

Package Length

8.25"

Package Height

4.25"

BAA Qualified

Yes

Origin

USA

Fire Rated

No

Cylinder Type

LFIC-Large Format Interchangeable Core

Keyway

Disposable Core

Finish Description

Satin Chrome

Lever Style

L-Lever

Rose/Escutcheon Trim

L-Rose

Product Type

Cylindrical Lock

Projection

2.5000

Lever Length

5.0000

Door Thickness

1 3/4"

Bore Size

2.1250

ADA Approved

False

2-3/4" Backset, #808 Strike, LFIC Disposable Core Entrance/Office Lockset, L Rose, L Lever, US26D Satin Chrome Finish
7 LineCylindrical Lever Locks

As the best overall lock in the Grade 2 class, the 7 Line® key-in-lever lock exceeds ANSI/BHMA A156.2 standards for cycling and durability. The 7 Line is designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities.

Features:
  • Cycle Test exceeds ANSI/BHMA A156.2 Grade 2 requirements
  • Fits modified 161 door preps
  • 10 standard functions available
  • 5-year limited warranty
Benefits: Reliable:
  • Internal through bolts supply strength and stability without requiring additional door preparation
Convenient:
  • Incorporates non-handed design for ease of installation and efficient warehousing
Secure:
  • Security key systems available and vandal resistant trim optional. Levers are solid one piece cast construction.
Certification Compliance: ANSI:
  • Certified ANSI A156.2 Series 4000 - Grade 2
UL:
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors
Positive Pressure:
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
ADA:
  • All levers conform to ADA requirements for barrier-free accessibility
California Code:
  • Levers (L and P) conform to California Administrative Code Title 19 and 24
Specifications: For Doors:
  • 1-3/4" (44mm) Thick Door standard
Backset:
  • 2-3/4" (70mm) Backset standard
Cylindrical Housing:
  • Steel, zinc dichromate finish
Front:
  • Wrought brass or stainless steel;
  • Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset
Strike:
  • Wrought brass or stainless steel
  • 2-3/4" Curved Lip Strike standard
Hand:
  • Non-handed — B, L, P lever designs
  • Handed — G and Y Coastal Series lever designs
Latch:
  • Brass 1/2" (13mm) throw
Keys:
  • Two, nickel silver
Cylinder:
  • Brass, 6-pin, LA keyway standard Can be master keyed or grand master
Finishes:
  • 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26, 26D & BSP
Door Prep:
  • ANSI A115.2; Specify 20- for 160 Prep
Strength and Durability:
  • Cycle Test: Exceeds 2-1/2 times ANSI/ BHMA
  • A156.2 Grade 2 cycle requirements
  • 5 Year limited warranty. No service required
Convenience:
  • Installs in 1 minute or less
  • Non-handed design for ease of installation and efficient warehousing with standard lever designs (Except G&Y)
  • User friendly packaging
  • User friendly instruction
  • Convenient installation diagram on box
Design:
  • Solid feel and precise lever action
  • Decorative Levers
  • Coastal Series designs
  • Gulfport and Yarmouth
  • Levers are solid one piece cast construction
Flexibility:
  • Fits modified 161 door preps. Internal through-bolts supply strength and stability without requiring additional door preparation
  • 12 architectural grade finishes
  • 10 standard functions
  • SARGENT uses engineered solutions and flexible manufacturing processes to accommodate special applications
Security:
  • Security key systems available
  • (Signature, XC, Keso, and Keso F1)
Applications:
  • Standard duty commercial interior & exterior doors
  • Offices
  • Commercial interiors
  • Medical clinics
  • Government facilities
  • Public buildings
Innovation:
  • SARGENT's revolutionary MicroShield® available.
  • This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew.
  • EPA and NSF approved and FDA listed
